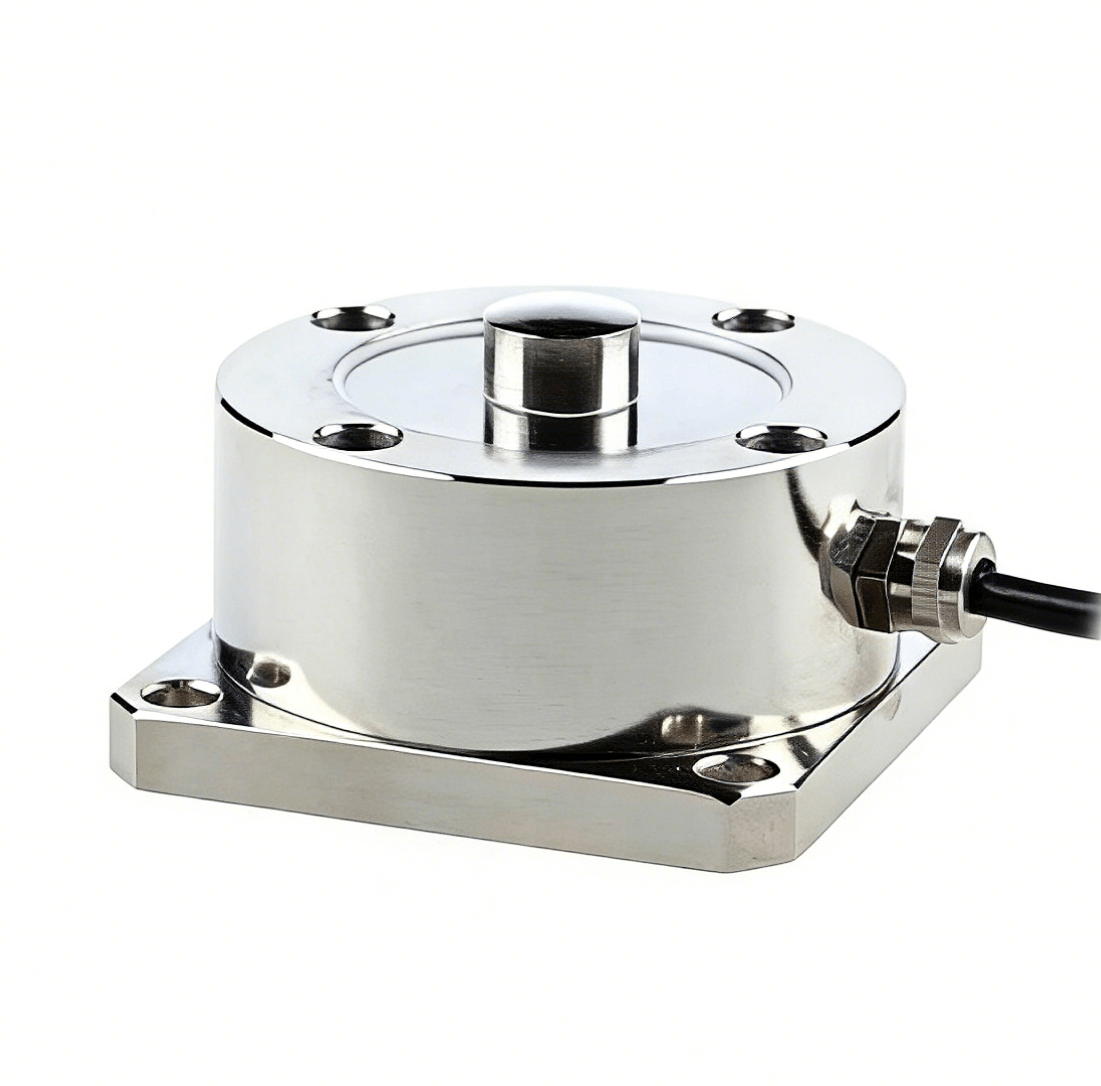

Compression Load Cell, Load Cell
Overview
- High‑accuracy compression measurement, typical overall error within ±0.03% F.S
- Wide capacity range from a few hundred kilograms up to several hundred tons
- Rugged low‑profile design, ideal for tank, silo, hopper and press weighing
- Stainless‑steel or alloy‑steel construction for heavy industrial and outdoor environments
- High overload tolerance, safe overload around 150% and ultimate up to 300%
- Standard 2.0–3.0 mV/V output, easy interface with indicators, amplifiers and PLCs
- Low deflection and high natural frequency for dynamic and impact force measurements
- Protection typically IP65–IP68, sealed against dust, moisture and splash water
- Operating temperature range roughly −20°C to +60°C for stable long‑term performance
- Optional dual‑bridge, high‑temperature or intrinsically safe versions for critical application

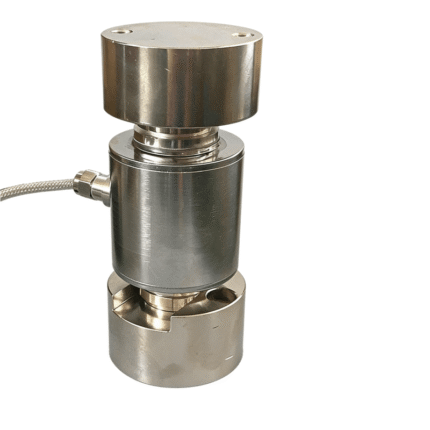

Canister Load Cell, Load Cell
Overview
High-capacity compression/tension measurement, accuracy typically ±0.02% F.S
Wide range from 10kN up to 1000kN+ for truck scales, silos and heavy machinery
Stainless-steel welded-seal construction, IP67/IP68 fully hermetic protection
Column-style canister design withstands extreme industrial shock and vibration
Safe overload 150%, ultimate overload up to 300-400% of rated capacity
Standard 2.0 mV/V sensitivity, compatible with truck scale indicators and PLCs
Low profile with high stiffness for stable dynamic force measurements
Operating temperature −20°C to +70°C, compensated −10°C to +50°C range
NTEP, OIML, ATEX certified versions for legal-for-trade and hazardous locations
Custom thread sizes and cable lengths for OEM truck scale and process integration

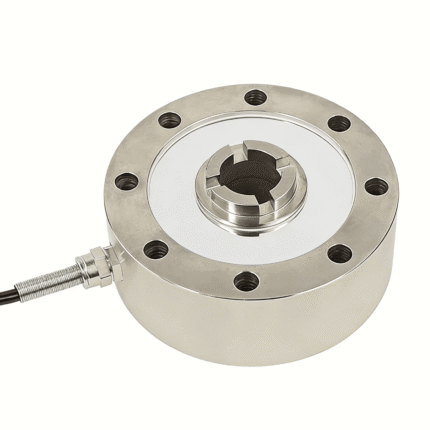

Low Profile Load Cell, Load Cell
Overview
- Ultra-low height design, typically 20-50mm, fits tight installation spaces
- High accuracy within ±0.05% F.S., ideal for precision platform and force testing
- Eccentric loading compensated, stable readings for off-center load placement
- Capacity range from 100N up to 100kN for diverse industrial applications
- Stainless steel or aluminum construction, corrosion-resistant for harsh environments
- Low deflection under 0.05mm, high stiffness for dynamic force measurement
- Protection IP65-IP68, sealed against dust, water and industrial contaminants
- Standard 2.0 mV/V output, easy integration with PLCs and data acquisition systems
- Operating temperature −20°C to +60°C with minimal thermal drift effects
- Fatigue-rated versions handle millions of cycles for continuous test applications

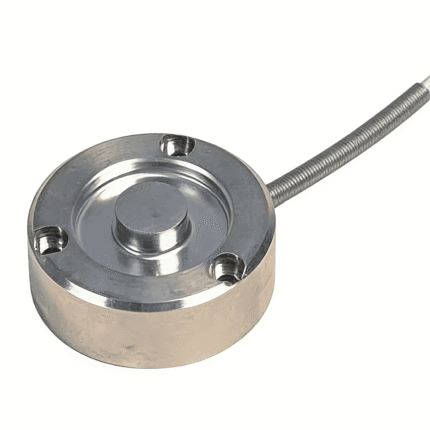

Button Load Cell, Load Cell
Overview
Ultra-compact button design, diameter typically 10-30mm for tight spaces
Compression-only measurement, accuracy within ±0.25% to ±0.5% F.S
Capacity range from 5kg up to 100-200kg for precision force testing
Integral load button ensures optimum force application and alignment
Stainless steel construction, resists corrosion in industrial environments
Low deflection under 0.02mm at rated capacity for stable readings
IP53-IP65 protection against dust and moderate liquid exposure
Standard sensitivity 1.0-2.0 mV/V, compatible with basic instrumentation
Wide temperature range −20°C to +80°C with good thermal stability
Ideal for 3C testing, robotics, switches and micro-assembly applications
Digital Load Cell, Load Cell
Overview
- Built-in A/D conversion, RS485/RS232 or Modbus RTU digital output directly
- Plug-and-play digital communication, eliminates analog signal noise and interference
- High noise immunity, stable transmission up to 1km without repeaters
- Onboard calibration and temperature compensation for ±0.01% F.S. accuracy
- Multiple units daisy-chain connection, up to 32 cells on one bus
- Real-time force data output at 10-100Hz sampling frequency range
- Bus-powered operation, 5-24V DC input with low power consumption
- Remote configuration of zero, span, filter and threshold parameters
- Integrated overload protection and fault diagnostics via digital interface
- IP67 sealed housing, suitable for harsh industrial and outdoor environments

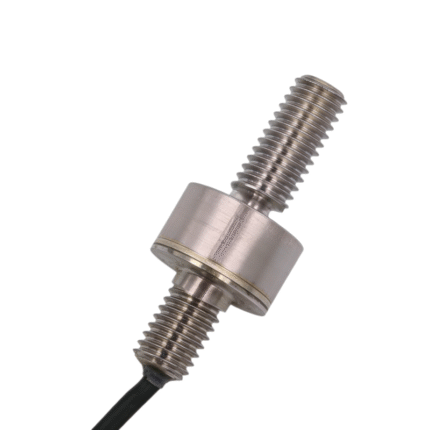

Miniature Force Sensor, Force Sensor
Overview
Ultra-compact 8-12mm diameter design
0.5-10kg capacity range available
±0.5% F.S. accuracy in miniature package
IP67 sealed stainless steel housing
1.0 mV/V output from 1000Ω bridge
Low deflection under 0.02mm at capacity
Temperature compensation -20°C to +80°C
300% safe overload protection
Lightweight 2-5g construction
Direct cable exit for tight installations
