200KG IP66 Planar Load Cell – Low-Profile Compression Force Sensor for Platform Scales & Automation

Product Description

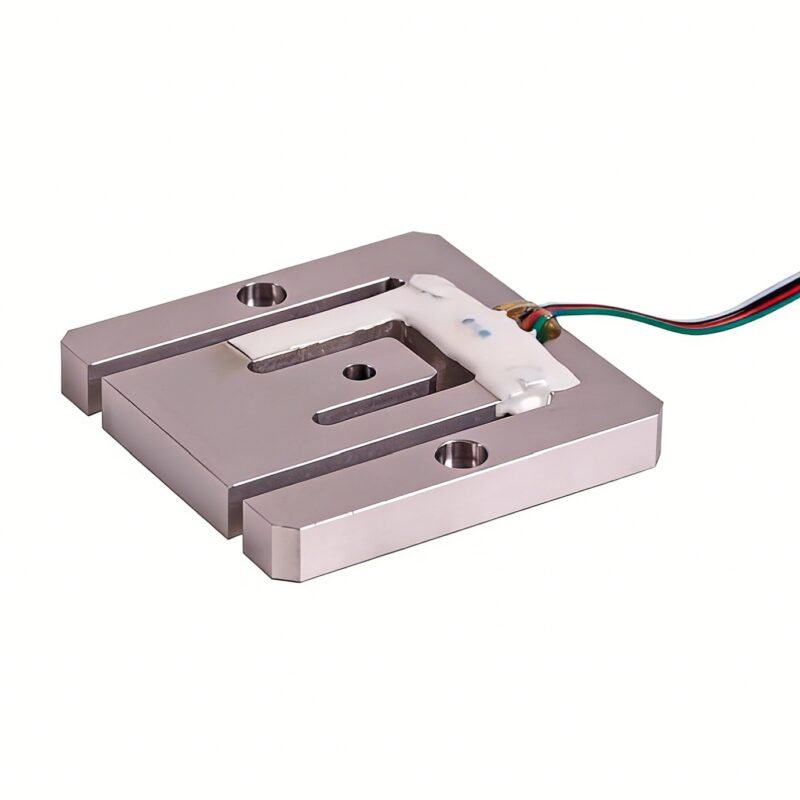

The 200KG IP66 Planar Load Cell is a low-profile, high-precision transducer designed for compression force measurement in compact spaces. Unlike bulky load cells, its planar structure provides stable readings with minimal height, solving installation challenges in tight applications like platform scales and automated machinery.

Equipped with advanced strain gauge technology and hermetic sealing, it delivers reliable performance in harsh environments while maintaining accuracy under dynamic loads. Its small footprint eliminates common pain points such as height restrictions and side load interference, making it perfect for bench scales, packaging machines, and medical equipment.

With factory calibration and IP66 protection, this sensor ensures long-term stability and easy integration, helping manufacturers avoid downtime from environmental damage or measurement drift.

Advantages of 200KG IP66 Planar Load Cell

• Ultra-low profile design for space-constrained applications

• 200 KG capacity with ±0.02% F.S. high accuracy

• IP66 hermetic sealing resists dust and high-pressure water

• Stainless steel construction withstands corrosion

• High side load resistance prevents measurement errors

• Temperature compensated for stable performance

• Simple 4-bolt mounting pattern for quick installation

• Low deflection maintains fast response times

• Analog mV/V output compatible with standard electronics

• RoHS compliant for global industrial use

200KG IP66 Planar Load Cell Specifications

Typical Applications of 200KG IP66 Planar Load Cell

Platform & Bench Scales

• Retail and industrial bench scales

• Checkweighers and filling machines

• Parcel and postal weighing systems

Industrial Automation

• Robotic pick-and-place force feedback

• Assembly line weight verification

• Packaging and labeling equipment

Medical & Laboratory

• Hospital bed and patient lift scales

• Laboratory balances and analyzers

• Pharmaceutical dispensing systems

Food Processing

• Multi-head weighers and fillers

• Washdown food processing scales

• Conveyor belt weight monitoring
