Overview
High measurement accuracy up to ±0.03% full-scale
Wide load range from 5 kg to 500 kg for industrial use
Compact and low-profile bending beam design
Stainless steel or alloy steel body ensures durability
Hermetically sealed structure for IP65–IP68 protection
Excellent stability and repeatability under dynamic loads
Easy installation with standard mounting accessories
Compatible with analog and digital indicators
Factory calibration ensures consistent performance
OEM/ODM service for global automation and weighing projects
- sales@connector-sensor.com
- +86 15120067961

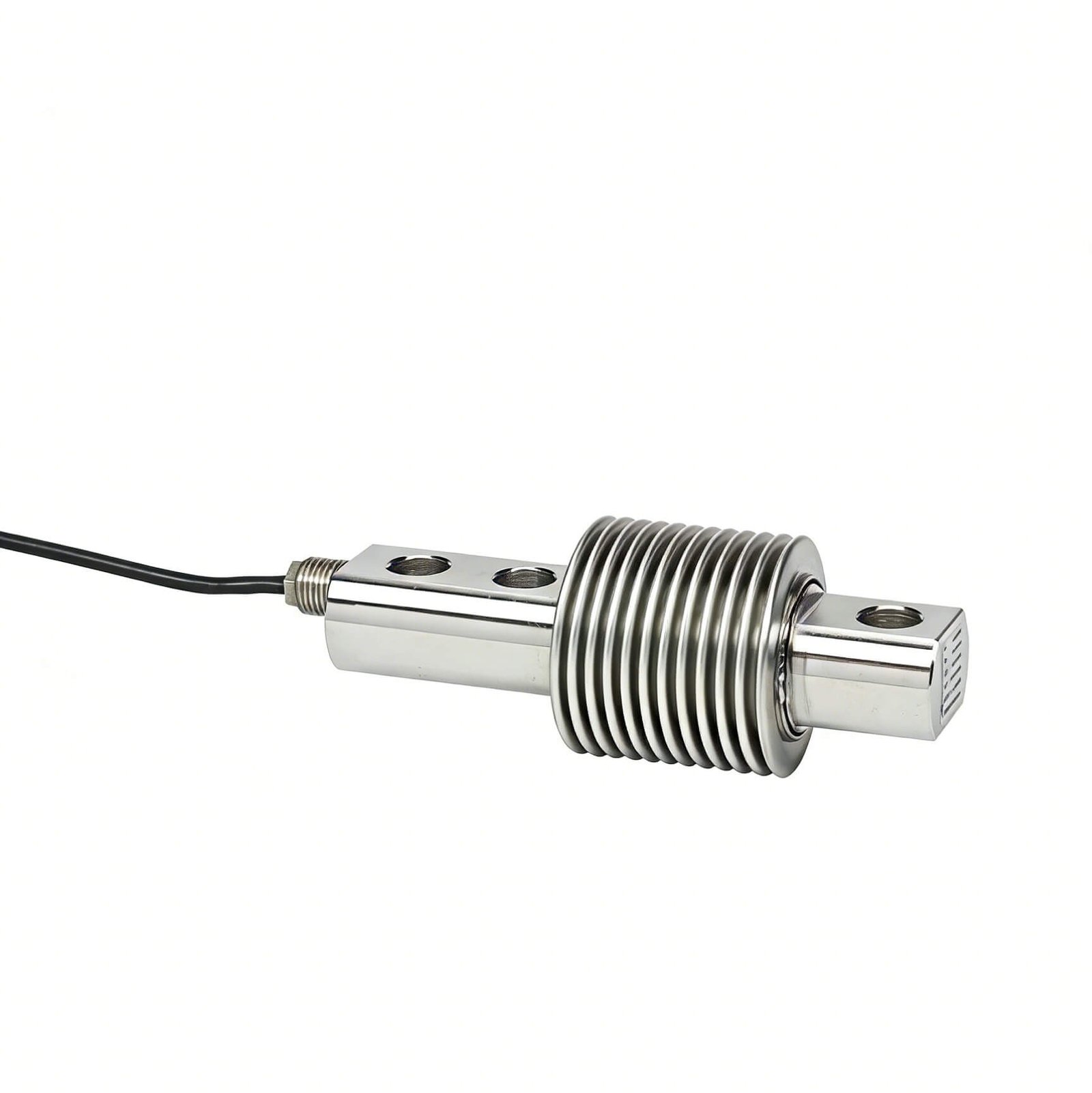

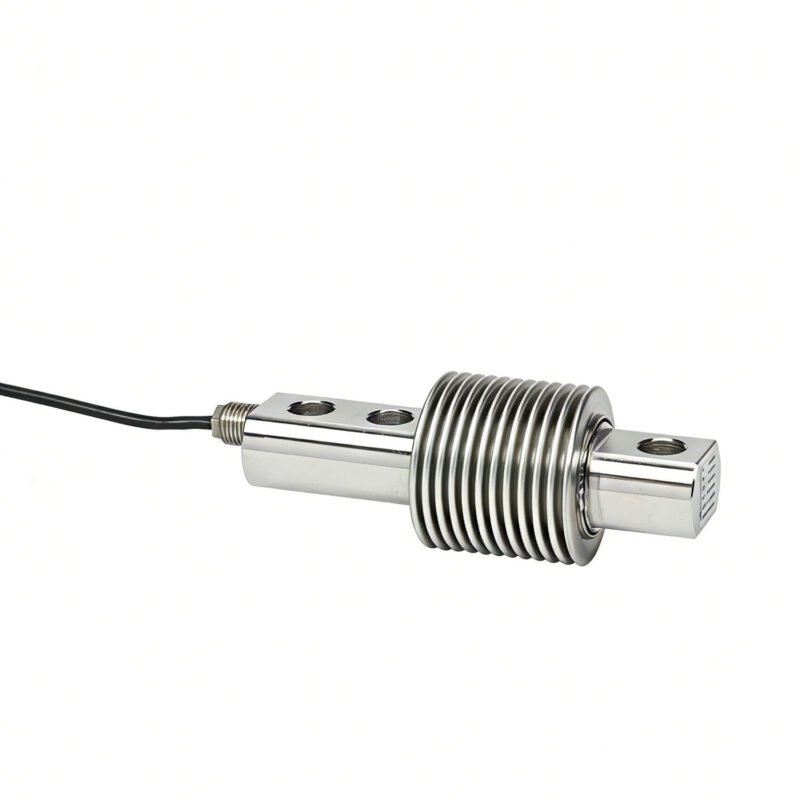

Bending Beam Load Cell for Industrial Weighing Systems
Product Description
Bending Beam Load Cell is a precision force measurement device designed for industrial and commercial weighing applications requiring compact design, high accuracy, and long-term stability. It’s widely adopted in platform scales, batching systems, and automation equipment.
Manufactured by a professional sensor factory, this load cell uses advanced strain gauge technology and robust alloy or stainless-steel material to ensure excellent linearity, repeatability, and overload tolerance. Its low profile and bending structure provide stable and reliable weight detection even in dynamic or vibration-prone environments.
Our bending beam load cell supports various mounting methods, and is compatible with standard weighing electronics and digital indicators — delivering an efficient, cost-effective solution for industrial and automation weighing needs.
Advantages of Bending Beam Load Cell
High accuracy for industrial automation and process measurement
Compact bending design suitable for limited spaces and platform use
Wide load capacity range from 5 kg to 500 kg
Typical accuracy ±0.03% F.S. for stable performance
Hermetically sealed, IP65–IP68 protection for harsh environments
Suitable for single or multi-load-cell systems
Easy installation with standard mounting accessories and brackets
Excellent resistance to side loading and vibration
Factory-calibrated, ready for plug-and-play integration
OEM customization and global export support from the original manufacturer
Bending Beam Load Cell Specifications
Typical Applications of Bending Beam Load Cell
Industrial Weighing Systems
Used in automated weighing production lines, batching, and process control systems.
Platform and Bench Scales
Ideal for small to medium-sized weighing platforms with precision needs.
Tank & Hopper Weighing
Ensures reliable, accurate weight monitoring in silos, tanks, or mixing vessels.
Packaging and Filling Machines
Integrates into machinery for filling, dispensing, and sorting based on weight control.
Agriculture and Livestock Systems
Used in smart feeder systems or agricultural load measurement.
OEM Equipment Integration
Supports equipment manufacturers and system designers requiring a compact yet accurate sensor element.
FAQ
1. What is a bending beam load cell used for?
It measures weight or force in applications like platform scales, tanks, and batching machines, where compact size and precision are essential.
2. How does a bending beam load cell work?
It uses strain gauges bonded on a bending element to convert deformation caused by load into an electrical signal proportional to weight.
3. What are the advantages of bending beam design?
It offers compact size, high accuracy, low profile installation, and superior resistance to off-center or side loading.
4. What load range options are available?
Standard models range from 5 kg to 500 kg, with custom versions available for specialized industrial applications.
5. Can this load cell be used in harsh environments?
Yes. Models with IP67 or IP68 ratings resist moisture, dust, and corrosive substances, ideal for industrial or outdoor setups.
6. Is it compatible with existing weighing indicators or transmitters?
Absolutely. It provides standard 2.0 mV/V output, making it compatible with most analog or digital weighing systems on the market.
7. What materials are available for construction?
Customers can choose between alloy steel for cost efficiency or stainless steel for superior corrosion resistance.
8. Do you offer OEM or custom solutions?
Yes, we are a direct manufacturer offering OEM/ODM customization for load range, cable length, connector type, or structural design.
