Overview
High-capacity compression/tension measurement, accuracy typically ±0.02% F.S
Wide range from 10kN up to 1000kN+ for truck scales, silos and heavy machinery
Stainless-steel welded-seal construction, IP67/IP68 fully hermetic protection
Column-style canister design withstands extreme industrial shock and vibration
Safe overload 150%, ultimate overload up to 300-400% of rated capacity
Standard 2.0 mV/V sensitivity, compatible with truck scale indicators and PLCs
Low profile with high stiffness for stable dynamic force measurements
Operating temperature −20°C to +70°C, compensated −10°C to +50°C range
NTEP, OIML, ATEX certified versions for legal-for-trade and hazardous locations
Custom thread sizes and cable lengths for OEM truck scale and process integration
- sales@connector-sensor.com
- +86 15120067961

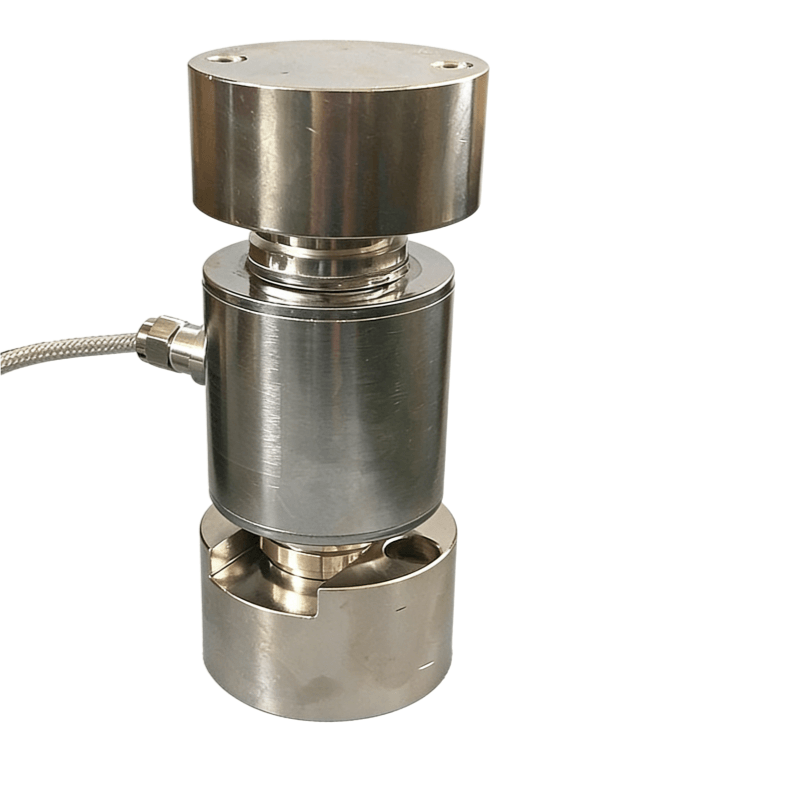

Canister Load Cell – Heavy-Duty Compression Force Sensor for Industrial Weighing & Automation
Product Description
The Canister Load Cell is a heavy-duty compression sensor engineered for precise and stable force measurement in industrial and large-scale weighing applications. Commonly used in truck scales, silos, tanks, and process weighing systems, this rugged load cell delivers high-capacity performance with outstanding accuracy and repeatability.
Constructed from stainless steel or alloy steel, the Canister Load Cell offers excellent resistance to shock, vibration, and environmental challenges. Its hermetically sealed design (IP67/IP68) ensures reliable operation in harsh outdoor or process conditions. The built-in temperature compensation minimizes drift across a wide range, delivering consistent data for industrial automation and control systems.
As a factory-direct manufacturer, we provide OEM/ODM customization, fast delivery, and competitive pricing for B2B clients worldwide. This sensor is widely integrated into industrial weighing machines, process control systems, and high-load platforms, helping engineers and integrators improve precision, durability, and system efficiency.
Advantages of Canister Load Cell
Heavy-duty compression sensor ideal for high-capacity weighing
High accuracy and excellent long-term stability
Hermetically sealed stainless-steel housing for rugged applications
Wide capacity range from 5 tons to 500 tons
High overload and shock resistance for industrial use
Temperature compensated for consistent performance
Compatible with analog (mV/V) and digital (RS485/Modbus) outputs
Factory calibrated for plug-and-play setup
OEM/ODM customization supported for B2B applications
Direct manufacturer supply ensures cost efficiency and reliability
Canister Load Cell Specifications
Typical Applications of Canister Load Cell
Industrial Weighing Systems
Truck scales, weighbridges, and conveyor weighing systems
Tank, silo, and hopper weighing solutions
Process control weighing and bulk material handling
Manufacturing & Automation
Hydraulic press force monitoring
Industrial machines requiring heavy compression feedback
Load testing and calibration devices
Energy & Infrastructure
Wind turbine force monitoring
Structural load measurement and safety testing
Bridge and building foundation monitoring
IoT & Smart Systems
Digital system integration via Modbus / RS485
Remote industrial weight monitoring
Smart factory data collection
FAQ
1. What is a canister load cell used for?
It’s designed for high-capacity compression force measurement in large-scale weighing systems such as truck scales, silos, and industrial tanks.
2. What is the difference between a canister and column load cell?
Both measure compression forces; the canister type has a cylindrical shape and enhanced sealing, providing superior stability in outdoor or industrial conditions.
3. Can it be used outdoors or in harsh environments?
Yes. With IP67/IP68 protection, this load cell can withstand moisture, dust, temperature changes, and mechanical shock.
4. What is the typical accuracy and repeatability?
Accuracy is within ±0.03% F.S., with excellent repeatability and minimal drift over time.
5. Is digital output available?
Yes. We offer versions supporting RS485 or Modbus RTU protocol for direct connection to PLCs, HMIs, or IoT devices.
6. Can you provide OEM/ODM services?
Absolutely. We customize load capacities, mounting threads, signal types, and branding for OEM and system integration partners.
7. What’s the safe overload limit?
Typically up to 150% of the full-scale capacity, ensuring durability under unexpected overloading conditions.
8. What industries commonly use canister load cells?
They are used across manufacturing, logistics, construction, agriculture, and energy sectors for weight monitoring, structural testing, and process control.
