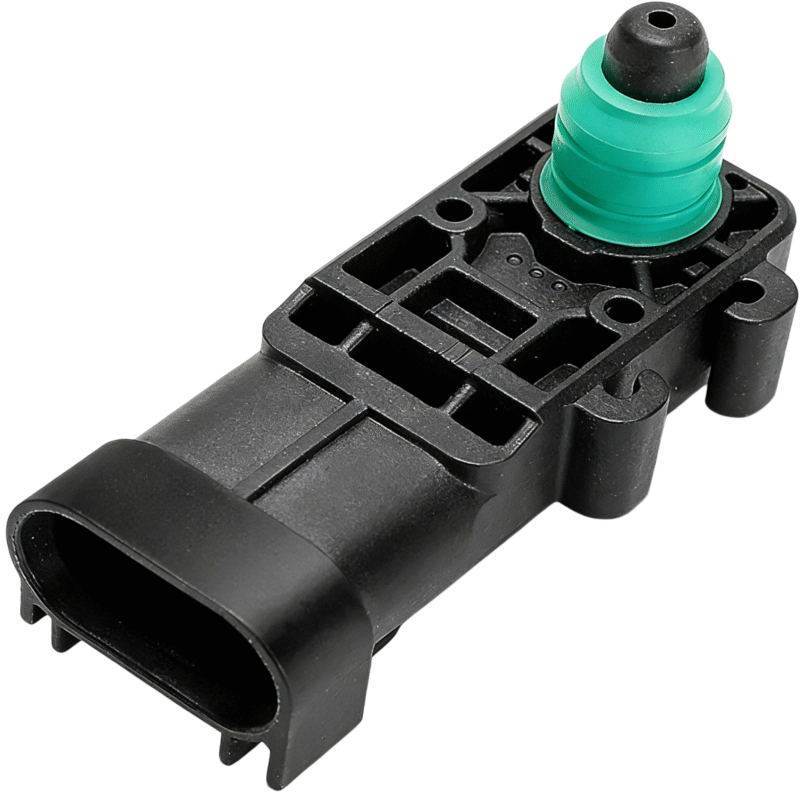

Fuel Tank Pressure Sensor, Pressure Sensor
Fuel Tank Pressure Sensor, Pressure Sensor
Key Features
- High accuracy fuel tank pressure measurement within ±1% FS
- Wide operating temperature range from -40°C to +125°C
- Durable automotive-grade construction resists vibration and corrosion
- Compact, lightweight design for easy fuel system integration
- Fast response time under 5 ms for real-time pressure monitoring
- Low power consumption ideal for vehicle ECU systems
- Compatible with gasoline, diesel, and ethanol fuel types
- Standard electrical output for plug-and-play integration
- Long lifespan over 100,000 operating hours
- Suitable for OEM, aftermarket, and vehicle repair applications
- sales@connector-sensor.com
- +86 15120067961
Fuel Tank Pressure Sensor – High‑Accuracy Automotive Fuel System Pressure & Vacuum Sensor for EVAP, Hybrid, and Engine Management Applications
Product Description
Fuel tank pressure sensors are precision devices designed to accurately measure the pressure or vacuum inside a vehicle’s fuel tank and deliver stable, calibrated electrical output for control modules.
Our sensors ensure high reliability, durability, and precision for fuel system pressure monitoring and leak detection in both traditional combustion and hybrid/electric vehicles. With robust design, wide operating range, and versatile output options, they are ideal for automotive OEMs, EVAP system designers, and industrial engine control applications.
Advantages of Fuel Tank Pressure Sensor
High accuracy and fast response for precise fuel pressure and vacuum measurement
Compact design with rugged construction for harsh automotive environments
Wide operating temperature range for engine bay and in‑tank applications
Excellent long‑term stability and chemical resistance to fuel vapors
Integrated temperature compensation ensuring accurate readings over full temperature range
Low power consumption for efficient vehicle energy management
Analog and digital output options (voltage, I2C, SPI, SENT) compatible with ECU systems
Easy integration for EVAP leak detection, tank pressure monitoring, and emission control
Custom calibration and packaging for OEM and aftermarket needs
RoHS and REACH compliant for global automotive and industrial markets
Fuel Tank Pressure Sensor Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Automotive Fuel Tank Pressure / Vacuum Sensor |
| Pressure Range | −115 kPa to +115 kPa (customizable) |
| Output Type | Analog (0.5–4.5 V), Digital (I2C / SPI / SENT) |
| Accuracy | ±0.5%FS to ±1.0%FS (calibrated) |
| Resolution | ≤0.1 kPa (digital mode) |
| Response Time | ≤10 ms |
| Operating Temperature | −40°C to +125°C |
| Storage Temperature | −40°C to +150°C |
| Supply Voltage | 5 V (nominal), optional 3.3 V |
| Current Consumption | ≤10 mA (typical) |
| Interface | Analog / I2C / SPI / SENT (configurable) |
| Package Type | Compact, fuel‑resistant housing (integrated connector) |
| Dimensions | from 25 × 15 mm (depending on model) |
| Temperature Compensation | Integrated, digital compensation algorithms |
| Media Compatibility | Compatible with gasoline, diesel, ethanol blends, and fuel vapors |
| Protection | IP69K, conformal coating for moisture and chemical resistance |
| Compliance | RoHS, REACH, AEC‑Q100 qualified |
Typical Applications of Fuel Tank Pressure Sensor
Automotive & EV Systems
Fuel tank pressure and vacuum measurement for EVAP leak detection systems
Fuel system monitoring in hybrid and internal combustion engines
Pressure feedback for fuel vapor purge control and emission reduction
Engine & Vehicle Diagnostics
On‑board diagnostics (OBD) and evaporative emission system testing
Fuel system health monitoring, leak detection, and safety control
Industrial & Off‑Road Equipment
Pressure management in mobile machinery, generators, and agricultural engines
Fuel tank and storage pressure sensing for remote monitoring systems
Aerospace & Marine Applications
Fuel level and pressure balance monitoring in aircraft and marine fuel tanks
Environmental sensing for pressurized storage and transport systems
