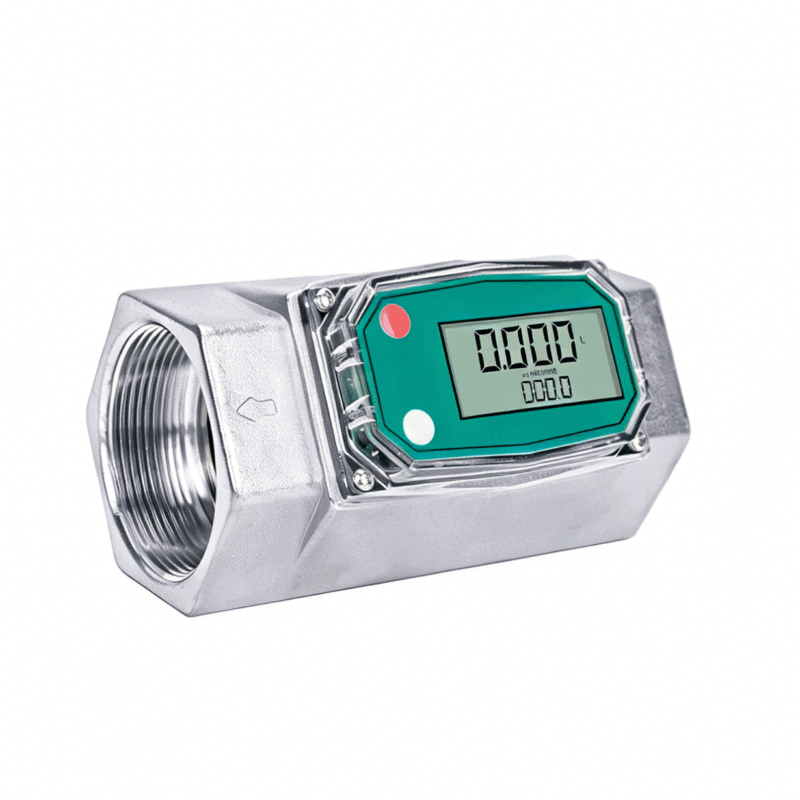

Hydraulic Flow Meter, Flow Meter
Hydraulic Flow Meter, Flow Meter
Key Features
- Provides ±1% full-scale precision for consistent and reliable hydraulic flow monitoring
- Measures from 0.1 L/min up to 200 L/min, adaptable to various hydraulic circuits and systems
- Designed to handle high-pressure conditions up to 40 MPa without performance loss
- Real-time flow detection with ≤ 10 ms signal output ensures quick system feedback and control
- Supports analog (0–5V / 4–20mA), pulse, RS485, and CAN outputs for versatile system integration
- Made from stainless steel or aluminum alloy for superior corrosion and oil resistance
- Lightweight and compact body suitable for OEM hydraulic systems or limited-space setups
- Pre-calibrated with long-term stability for maintenance-free usage
- Low power consumption and optimized electronic circuitry minimize signal interference
- Fully CE / RoHS compliant, ensuring safe, reliable performance in industrial environments worldwide
- sales@connector-sensor.com
- +86 15120067961
Hydraulic Flow Meter – Accurate Oil Flow Monitoring for Industrial & Mobile Hydraulic Systems
Product Description
The Hydraulic Flow Meter is a high-precision digital measuring device designed for real-time monitoring of hydraulic oil and fluid flow in industrial and mobile equipment. Built to perform under high-pressure, high-temperature conditions, it provides engineers with stable and accurate data essential for optimizing system efficiency and preventing equipment failures.
This flow meter integrates advanced flow sensing technology and robust electronic signal processing, delivering fast response and low drift performance over long-term operation. With multiple signal outputs (analog, pulse, or RS485), the meter can easily interface with PLCs, data loggers, or IoT monitoring systems — making it ideal for modern automation environments.
Its compact yet rugged design ensures compatibility with tight hydraulic circuits and provides exceptional resistance against vibration, pressure surges, and oil contamination — a reliable solution for system diagnostics, preventive maintenance, and performance testing.
Advantages of Hydraulic Flow Meter
- High-accuracy flow measurement for hydraulic oil systems
- Wide flow range suitable for low and high flow applications
- High pressure resistance for demanding hydraulic environments
- Excellent repeatability and long-term stability
- Real-time monitoring to prevent pump damage and system failure
- Multiple output options: Pulse, 4–20mA, 0–5V, RS485 (optional)
- Compact inline installation design
- Strong anti-vibration and shock-resistant structure
- Compatible with mineral oils and common hydraulic fluids
- Industrial-grade construction for harsh environments
Hydraulic Flow Meter Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Digital / Analog Hydraulic Flow Meter |
| Measurable Fluids | Hydraulic oil, lubricants, compatible liquids |
| Flow Range | 0.1 – 200 L/min (customizable) |
| Accuracy | ±1.0% F.S. (typical) |
| Pressure Rating | Up to 40 MPa |
| Output Type | Analog (0–5V / 4–20mA), Pulse, RS485, CAN |
| Response Time | ≤10 ms |
| Operating Voltage | 9–24 V DC |
| Current Consumption | ≤20 mA |
| Operating Temperature | –25°C to +85°C |
| Material | Stainless steel / aluminum alloy |
| Protection Degree | IP65 / IP67 |
| Calibration | Factory calibrated |
| Compliance | CE / RoHS certified |
Typical Applications of Hydraulic Flow Meter
Hydraulic System Monitoring
Real-time oil flow tracking in industrial hydraulic circuits
Prevents component overheating or pump damage
Feedback control for hydraulic servo and proportional valves
Industrial Automation
Flow control in CNC machines, molding equipment, and press systems
Integration into PLC-based hydraulic control panels
Efficiency testing and predictive maintenance
Mobile Machinery
Flow measurement in construction, agricultural, and mining equipment
Hydraulic steering and power control systems
Energy & Research
Hydraulic fluid performance testing for laboratories and OEM R&D
Data logging and IoT-based remote hydraulic monitoring
