High Performance Inertial Measurement Unit LINS688B
High Performance Inertial Measurement Unit LINS688B
Main Features
– Triaxial, digital gyroscope, ±450°/sec dynamic range
– Triaxial, digital accelerometer, ±20g
– Triaxial, digital magnetometer, ±8 gauss
– Digital pressure sensor, 300 mbar to 1100 mbar
– High bandwidth 400Hz
– Factory-calibrated sensitivity, bias, and axial alignment
– Calibration temperature range: −40°C to +85°C
– SPI-compatible serial interface
– Embedded temperature sensor
– Single-supply operation: 3.0 V to 3.6 V
– 2000 g shock survivability
– Small in size and light in weight
– Fully compatible with ADIS16488A
- sales@connector-sensor.com
- +86 15120067961
Specification
Main Features
– Triaxial, digital gyroscope, ±450°/sec dynamic range
– Accelerometer, ±20g
– Digital magnetometer, ±8 gauss
– Digital pressure sensor, 300 mbar to 1100 mbar
– High bandwidth 400Hz
– Factory-calibrated sensitivity, bias, and axial alignment
– Calibration temperature range: −40°C to +85°C
– SPI-compatible serial interface
– Embedded temperature sensor
– Single-supply operation: 3.0 V to 3.6 V
– 2000 g shock survivability
– Small in size and light in weight
– Fully compatible with ADIS16488A
Applications OF the Inertial Measurement Unit
– Anti-vibration, attitude control for industrial applications
– Autonomous machines
– Robotics control
– Platform stabilization and control
– Instrumentation
Description OF the Inertial Measurement Unit
Inertial Measurement Unit LINS688B is an inertial measurement device with small volume and high overload resistance. Gyro bias in-run stability is 1.5°/ h (Allan), and accelerometer bias in-run stability is 20ug (Allan). It can be used for precise navigation, control and dynamic measurement of carrier. This series of products use high-precision MEMS inertial devices, which have high reliability and high firmness, and can still accurately measure the angular velocity and acceleration information of the moving carrier in harsh environments.
LINS688B has a built-in three-axis gyro and three-axis accelerometer for measuring the three-axis angular rate and three-axis acceleration of the carrier. The gyro and accelerometer data with error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) are output through the serial port according to the agreed communication protocol, and the three-axis magnetic sensor and air pressure sensor are built in.
- Technical Specifications OF Inertial measurement unit
| Parameter | Test Condition | Min | Nominal | Max | Unit | ||
| Gyroscope | Range | -450 | +450 | deg/s | |||
| Bias instability | Allan Variance | 1.0 | 1.5 | 2.0 | deg/h | ||
| Angle Random walk | 0.065 | deg/√h | |||||
| Resolution | 0.007 | deg/s | |||||
| Nonlinearity | FS = 450 °/s | 0.1 | %FS | ||||
| Bandwith | 400 | Hz | |||||
| Accelerometer | Range | -20 | +20 | g | |||
| Bias instability | 20 | μg | |||||
| Velocity Random walk | 0.02 | m/s/√h | |||||
| Resolution | 0.02 | mg | |||||
| Nonlinearity | 0.1 | %FS | |||||
| Bandwith | 480 | Hz | |||||
| Magnetometer | Range | -8 | +8 | gauss | |||
| Resolution | 0.2 | mg | |||||
| Noise density | 50 | μg | |||||
| Barometer | Range | 300 | 1100 | mbar | |||
| Tolerance | 4.5 | mbar | |||||
| COM interface | SPI | Baud rate | <10MHz | MHz | |||
| Electrical characteristics | Voltage | 3.0 | 3.3 | 3.6 | V | ||
| Power Consumption | 0.5 | W | |||||
| Ripple | P-P | 100 | mV | ||||

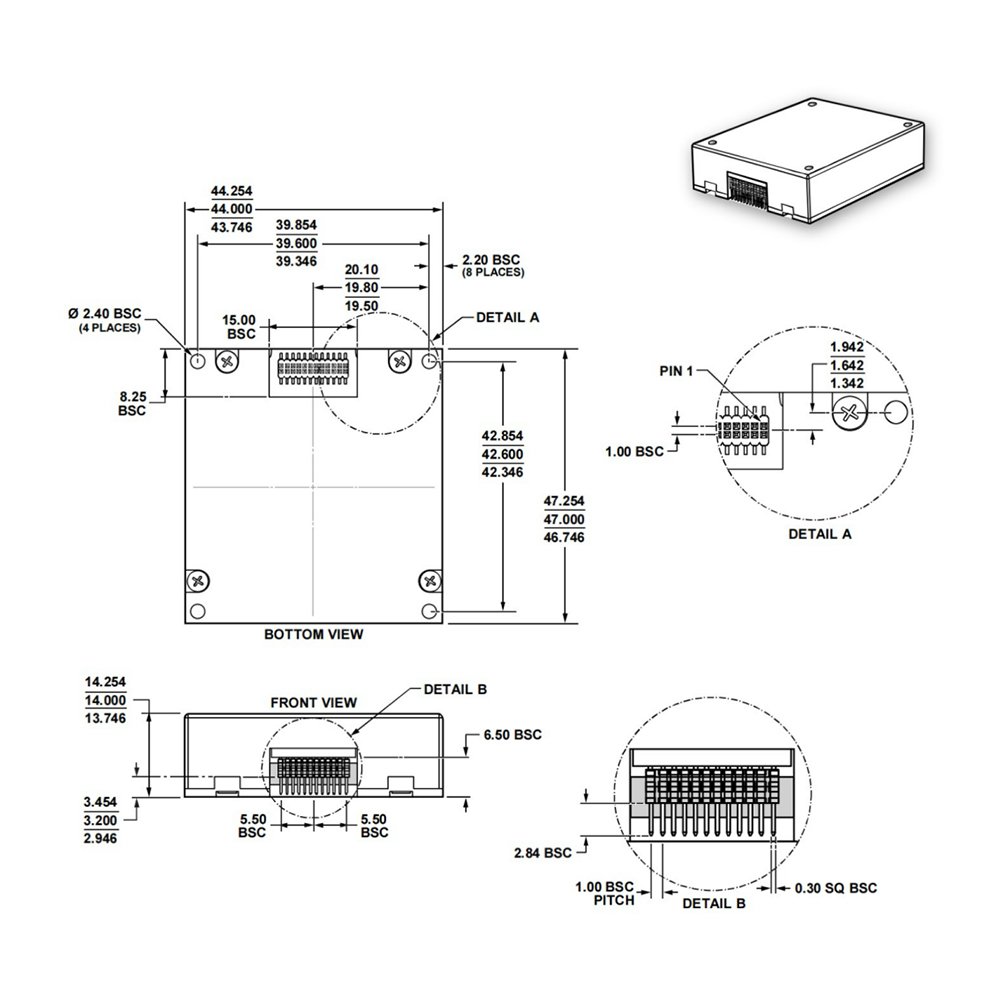

| Structural characteristics | Dimension | 44.0 × 47.0 ×14.0 | mm | ||||
| Weight | 50 | g | |||||
|
Use environment | Working Temperature | -40 | 75 | ||||
| Storage Temperature | -45 | 85 | |||||
| Vibration | 10〜2000Hz, 6g | ||||||
| Shock | 30g, 11ms | ||||||
| Overload | (Half-sine 0.5msec) | 1000g | |||||
| Criminality | MTBF | 20000 | h | ||||
| Continuous working time | 120 | h | |||||
