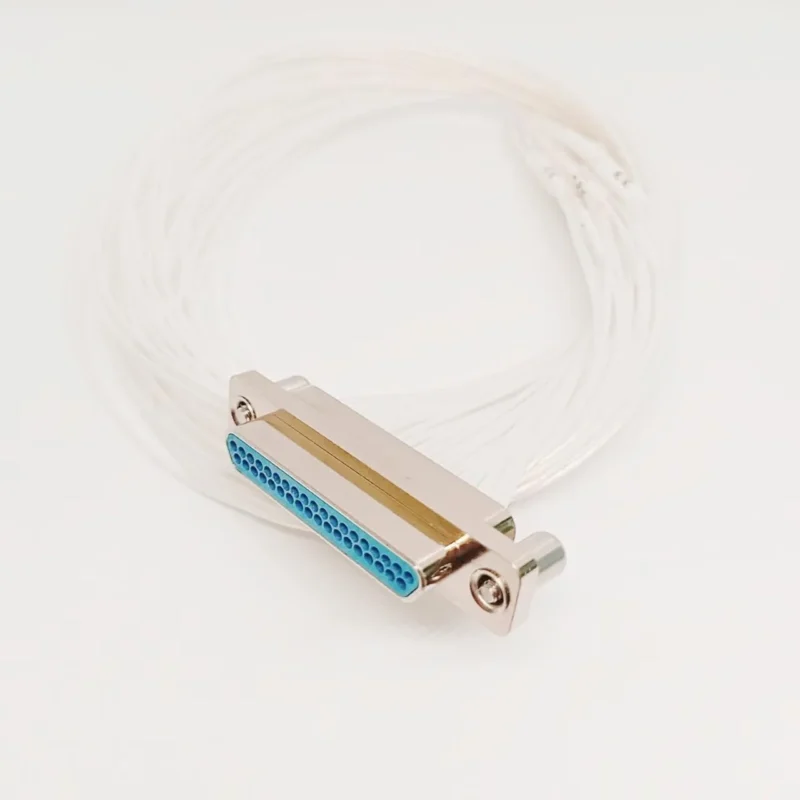

J30J Series Connector, J30J-9TJL-30CM
J30J Series Connector, J30J-9TJL-30CM
Overview
- Number of Pin/Plug :9 Pins/Plug
- Uses twisted wire pins, with a contact pitch of 1.27 mm and a row pitch of 1.1 mm.
- Product Features: High density, miniaturization, high reliability.
- Cable Length: 30 cm
- Suitable for wires with a cross-sectional area of 0.1 mm² to 0.15 mm².
- Product performance meets GJB 2446 requirements, equivalent to US military standard MIL-DTL-83513.
- Execution Standard: Q/DJ-001-2017 “
- sales@connector-sensor.com
- +86 15120067961
Aerospace/Aviation/Military/Industry Connector J30J-9TJL Micro Rectangular Electrical Connector 9 Pins Plug with High Temperature Conductor AFR ,30cm Length, J30J-9TJL-30cm
Detailed Specification for J30J Series Micro Rectangular Electrical Connectors(J30J-9TJL):
Typical Applications:
J30J Series Micro Rectangular Electrical Connectors (J30J-9TJL) are widely used for internal electrical signal connection of equipment and instrument cabins in industries such as aerospace, aviation, weapons, ships, communications, and computers.
Environmental Conditions:
- Working temperature: -55℃~125℃
- Relative humidity: 90%~95% at 40±2℃
- Atmospheric pressure: 101.3 kPa ~4.4 kPa
- Sinusoidal vibration: 10 Hz~2000 Hz, acceleration 196 m/s²
- Shock: 980 m/s²
- Acceleration: 980 m/s²
Main Technical Performance：
| Product Code: | J30J-9TJL-100cm |
| Number of Pins/Plug(Male） | 9 Pins/Plug (Male） |
| Length | 30 cm |
| Rated Current: | 3 A, 13 A (only 16# power type contact) |
| Contact Resistance: | ≤10 MΩ |
| Insulation Resistance: | ≥5000 MΩ |
| Dielectric Withstand Voltage: | 800 V |
| Mechanical Life: | 500 times |
J30J-9TJL- 30CM Specification：
| Series: | J30J Series Electrical Connector |
| Type of Connector: | Rectangular Electrical Connector |
| Contact Number: | 9 |
| Cable Length | 30 cm |
| Working temperature: | -55℃~125℃ |
| Relative humidity: | 90%~95% at 40±2℃ |
| Atmospheric pressure: | 101.3 kPa~4.4 kPa |
| Sinusoidal vibration: | 10 Hz~2000 Hz, acceleration 196 m/s² |
| Shock: | 980 m/s² |
| Acceleration: | 980 m/s² |
| Contact Configuration: | The J30J-9 TJL denotes a J30J series connector with a metal housing, 9-pin contact configuration, and L-shaped locking assembly for crimping terminal connections. |
| Weight： | 20.8 g |
| Rated Current: | 3 A, 13 A (only 16# power type contact) |
| Contact Resistance: | ≤10 MΩ |
| Insulation Resistance: | ≥5000 MΩ |
| Dielectric Withstand Voltage: | 800 V |
| Mechanical Life: | 500 times |
| Package | Carton |
| Application: | Aerospace, aviation, weapons, ships, communications, and computers, auto, AI, robots, etc. |
| Certification: | CE, RoHS, UL |
| Minimum Order Quantity: | 100 pcs |
| Delivery Time: | 2-9 weeks |
| Supply Ability: | 100,000 pcs per month |
| Combination of Usage: | J30J-9ZKL-30cm |
J30J-9TJL-30 CM Model Naming:
J30– J – 9 – TJ– L- 30 CM
① ② ③ ④ ⑤ ⑥
① Main Code: J30
② Shell Material: J-Metal Shell
③ Contact Number: 9 Pins
④ Types of Contact Elements: TJ means Plug with Pins
⑤ Contact Termination Type: L-shaped Locking Assembly
⑥ Cable Length: 30 cm
Contact Arrangement (Viewed from mating face of plug)：
Dimensions：
3D Perspective View
Outline Drawing
Plug Size:
| Part Number | A | B | C | D | E | F | G |
| J30J-9TJ | 19.6 | 14.3 | 7.6 | 8.3 | 9.9 | 4.7 | 6.8 |
Quality Certifications:
Get More Information:
Do you have any question about the J30J-9TJL-30cm
Contact us now via Live Chat, WhatsApp, WeChat (+86 151 2006 7961), or email us at sales@connector-sensor.com
Packaging:
Each Rectangular Electrical Connector is individually packed in a durable cardboard box with protective cushioning to ensure damage-free transit and secure delivery.
Shipping:
We offer flexible shipping options to suit your requirements:
Standard Shipping: Delivered worldwide via reliable courier partners.
Expedited Shipping: Available for urgent orders (additional costs apply).
Processing & Tracking:
Lead Time: Orders are typically processed and shipped within 1–2 business days.
Tracking: A tracking number will be provided for real-time updates.
Delivery Time: Varies based on the destination and selected service.
Please Note: International customers are responsible for customs duties, taxes, or fees. We are not liable for delays caused by customs clearance.
Additional Details：
Quality Assurance: Every connector undergoes individual inspection to guarantee peak performance.
Customization: Custom packaging and labeling are available for bulk orders.
Support: If an item arrives damaged or defective, please contact our support team immediately for prompt assistance.
Thank you for choosing our Circular Electrical Connectors. We are committed to providing quality products and exceptional service.
