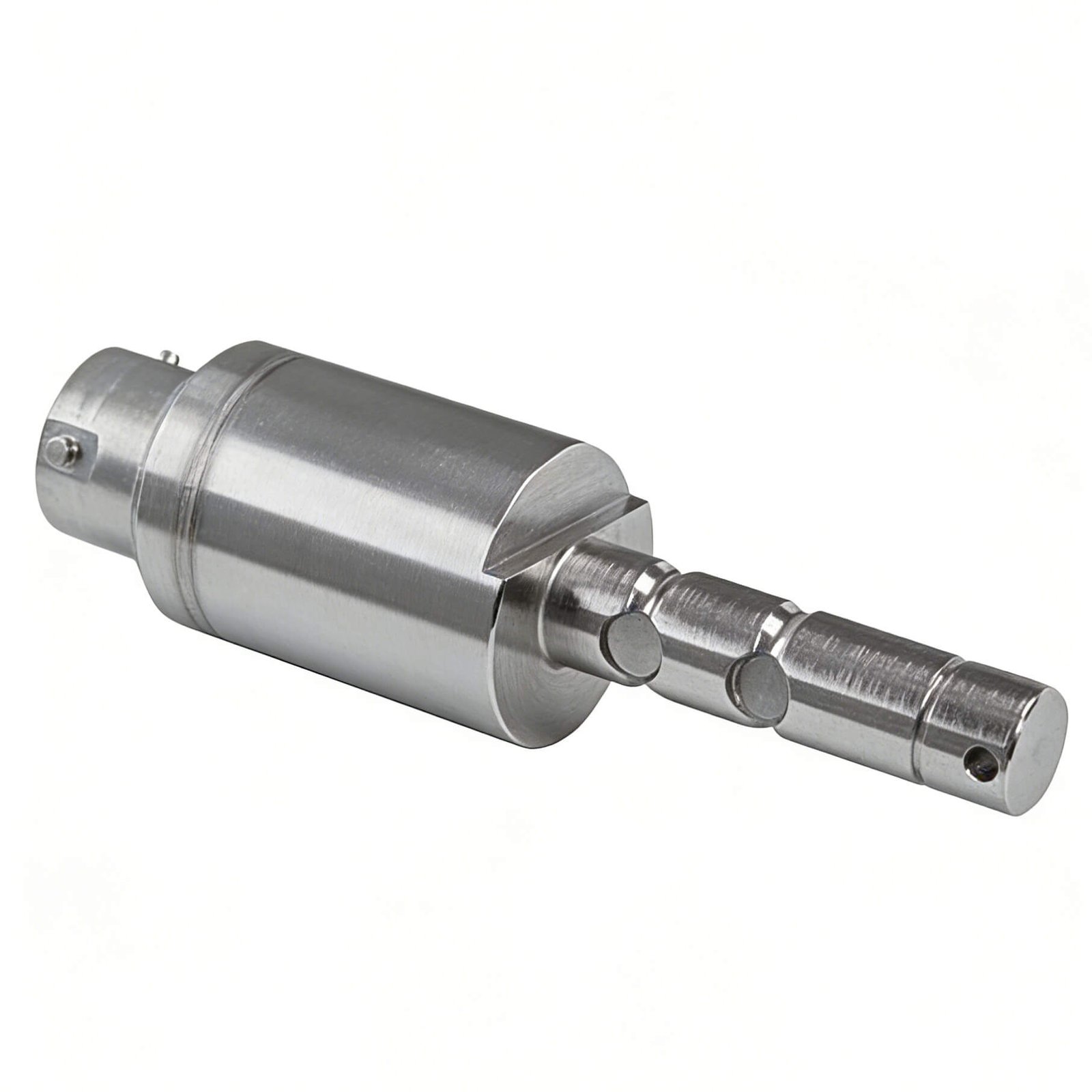

Load Pin Load Cell – High-Precision, Robust Tension/Compression Sensing for Industrial Automation & OEM IntegrationProduct
Description
The Load Pin Load Cell is a rugged, high-precision through-pin load transducer engineered for real-time tension, compression, and shear force measurement in demanding industrial applications. Unlike traditional strain gauge sensors, this pin-style load cell offers seamless drop-in replacement for pins, shafts, or axles, eliminating complex retrofits and minimizing downtime for B2B manufacturers.
Featuring advanced foil strain gauge technology and stainless steel construction, it provides accurate load data via analog or digital outputs, integrating effortlessly with PLCs, data acquisition systems, and SCADA platforms. Its compact, IP67-rated design ensures reliability in harsh environments, from cranes to winches, making it ideal for OEMs seeking scalable, low-maintenance solutions.
Advantages of Load Pin Load Cell
High-precision foil strain gauge for reliable load measurement up to 100 tons
Wide capacity range: 100kg to 100 tons, customizable for OEM needs
Superior accuracy: ±0.5% FS (full scale) typical, with nonlinearity <0.1%
IP67/IP68 waterproof rating for harsh industrial environments
Direct pin replacement design cuts installation time by 50%
Analog (mV/V) or digital (4-20mA, CANbus) output options for easy PLC integration
Fatigue-rated for millions of cycles, minimizing long-term maintenance
Customizable dimensions and capacities from factory stock
RoHS compliant with CE certification for global B2B distribution
Low deflection (<0.025mm at full scale) for precise control systems
Load Pin Load Cell Specifications
Typical Applications of Load Pin Load Cell
Industrial Automation & Crane Systems
Winch and hoist overload protection
Crane hook load monitoring for safety compliance
Structural integrity testing in lifting equipment
Marine & Offshore Equipment
Mooring line tension measurement
Winch drum load sensing on vessels
Subsea cable tension monitoring
Material Handling & OEM Machinery
Conveyor belt tension control
Forklift and AGV axle load detection
Custom machinery pin load integration
Test & Measurement Labs
Fatigue testing rigs
Dynamic load simulation for R&D
Precision force calibration setups
FAQ
1. What is a load pin load cell and how does it work?
A load pin load cell is a through-pin transducer that measures tension, compression, or shear by replacing existing pins in machinery like cranes. Strain gauges detect deformation, converting it to precise load data.
2. What capacities are available for your load pin load cells?
Standard ranges from 100kg to 100 tons, with full OEM customization. This addresses pain points in scaling for heavy-duty cranes or marine winches without multiple suppliers.
3. Is the load pin suitable for harsh, wet environments?
Yes, IP67/IP68 rated for submersion and corrosion resistance. Perfect for offshore or marine applications where traditional sensors fail quickly.
4. How accurate is the load pin load cell?
Typical ±0.5% FS accuracy with <0.1% nonlinearity – calibrated to NIST standards. Solves B2B concerns over unreliable readings causing safety risks or downtime.
5. Can I integrate it with my PLC or SCADA system?
Absolutely, with analog mV/V, 4-20mA, or digital outputs. Our plug-and-play design cuts integration time, saving costs for automation upgrades.
6. What’s the lead time for custom load pins?
Stock models ship in 3-5 days; customs in 2-4 weeks. As a direct manufacturer, we eliminate delays common with resellers.
7. Does it require frequent recalibration?
No, <0.05% creep and factory traceability ensure stability over years. Reduces maintenance pain points in 24/7 industrial operations.
8. Are bulk OEM orders supported with certifications?
Yes, RoHS/CE compliant with volume discounts. Tailored for B2B trade, including private labeling to streamline your supply chain.
Related Sensor Products
Compression Load Cell
Single Point Load Cell
S-Beam Load Cell
Wireless Load Cell
