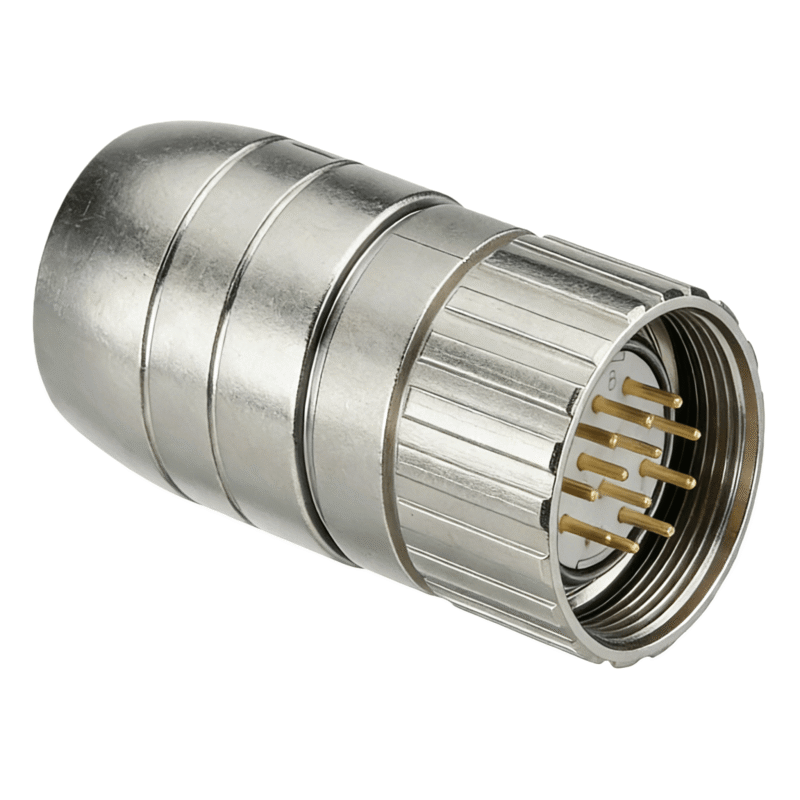

M23 Connector, M Series Connector
M23 Connector, M Series Connector
Features
-Series: M Series Connector (Metric Circular Connector)
-Model: M23 Connector
– Available in 6, 7, 8, 9, 12, 16, 17, and 19 poles, supporting high-current power transmission and multi-channel signal feedback
-Gender: Male and Female (Plug & Receptacle / Panel Mount)
–Specifically engineered for power transmission (up to 30A/630V) and signal feedback, making it the industry standard for servo motors and drive systems
-Fully compliant with DIN EN 61984 standards, ensuring seamless cross-brand compatibility with international motor and drive manufacturers
–IP67/IP68 waterproof rating, providing exceptional sealing against industrial oils, coolants, dust, and moisture in harsh factory environments
–Heavy-duty nickel-plated brass or zinc alloy shells provide 360° EMI/RFI shielding to prevent signal interference in high-frequency applications
– Available in standard M23 x 1.0 threaded locking or Speedtec-compatible quick-locking mechanisms for fast, vibration-resistant connections
–Operates reliably in extreme temperatures ranging from -40°C to +125°C, ideal for high-heat motor applications
–Supports modular contact inserts (Power, Signal, or Hybrid), allowing for customized cable assembly to simplify complex field wiring
- sales@connector-sensor.com
- +86 15120067961
M23 Circular Connectors, Male & Female Industrial Power & Signal Plug, 23 mm Metric Thread, IP67/IP68 Waterproof for Servo Drives & Heavy Machinery
What is M23 Connector
M23 connectors feature a 23 mm metric threaded interface, specifically engineered for secure locking in high-vibration environments. Manufactured in strict compliance with DIN EN 61984 and relevant international standards, our connectors ensure seamless compatibility with your servo motors.
Unlike smaller M-series connectors, the M23 offers superior load-bearing capacity, supporting simultaneous high-power output and multi-channel signal transmission. This makes them perfectly suited for the rigorous demands of robotics, complex motion control, and Industry 4.0 architectures.
Advantages of M23 Connectors
- High Power Capacity
M23 connectors support high current (up to 30A) and high voltage (up to 630V), making them the industry standard for motor supply.
- Extreme Durability
The reinforced metal housing is built to withstand mechanical impact, vibration, and harsh factory floor environments.
- Modular Inserts
Available in power, signal, and hybrid (power + signal) configurations, allowing for a versatile “single-cable” solution.
- Long-Term Reliability
Designed for high mating cycles (> 500 cycles )and resistance to oil, chemicals, and extreme temperatures.
Main Types of M23 Connectors
| M23 6 Pin Connector |
| M23 8 Pin Connector |
| M23 12 Pin Connector |
| M23 17 Pin Connector |
| M23 19 Pin Connector |
Details of M23 Connectors
| Parameter | Specification |
| Series | M Series Connector |
| Model | M23 Connector |
| Industry Standards | DIN EN 61984, UL 2237 Compliance |
| Number of Contacts | 6, 7, 8, 9 12, 16, 17, 19 |
| Orientation | Straight or Right Angle |
| Gender | Male & Female Socket / Panel Mount Sets |
| Locking Style | Threaded (M 23 x 1.0) or Speedtec Quick-Lock |
| Cable Length | 0.5 m – 50 m (Customizable for heavy machinery) |
| Operating Temp | -40°C ~ +125°C (High-temperature endurance) |
| Rated Voltage | 150 V to 630 V |
| Current Rating | 8 A to 30 A |
| Contact Resistance | ≤ 3 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| IP Rating | IP67, IP68 |
| Housing Material | Nickel-plated Brass, Zinc Alloy, Stainless Steel |
| Contact Plating | Gold-plated over Copper Alloy |
| Mating Cycles： | > 500 Cycles |
| Certification | CE, RoHS, UL, REACH |
M23 Connector Application Guide
| Type | Primary Function | Typical Applications / Protocols |
| Power | 3-Phase Motor Supply | Servo Motors, AC Drives, High-current actuators |
| Signal | Encoder/Feedback | Resolvers, Multi-channel Sensors, I/O distribution |
| Hybrid | One-Cable Technology | Combined Power + Signal for robotics and CNC |
Typical Applications
- Servo Motors & Motion Control
- CNC Machining & Machine Tools
- Robotics & Integrated Production Lines
- Packaging & Bottling Plants
- Heavy-Duty Transportation & Railway
- Wind & Solar Energy (Inverters/Pitch Control)
- Industrial Automation Hubs
