Features
-Series: M Series Connector (Metric Circular Connector)
-Model: M58 Connector
-Available in high-power 6-pin (2+3+PE) and 8-pin (4+3+PE) configurations, specifically designed for ultra-high current and voltage loads
-Gender: Male and Female (Plug & Receptacle / Panel Mount)
– Engineered for heavy-duty energy transfer, supporting currents up to 150A and operating voltages up to 630V/1000V
-Features an oversized, high-strength metal housing (M58 x 2.0 thread) designed to withstand extreme mechanical stress, heavy impacts, and high-vibration industrial environments
-Fully compliant with DIN EN 61984 and UL 2237 for high-power industrial equipment, ensuring seamless compatibility with large-scale servo drives and motors
– IP67/IP68 waterproof rating, providing an airtight seal against industrial lubricants, coolants, and temporary submersion
–Integrated 360° EMI/RFI shielding ensures that high-power electrical noise does not interfere with surrounding control systems or encoders
– Utilizes high-conductivity copper alloy contacts with a resistance of ≤ 0.5 mΩ, significantly reducing heat generation and power loss during high-load operation
-Designed with massive cable entries to accommodate the extra-large, shielded power cables required for heavy industrial motors and infrastructure
-Precision threaded locking mechanism ensures a fail-safe connection that resists accidental decoupling even under intense mechanical strain
- sales@connector-sensor.com
- +86 15120067961

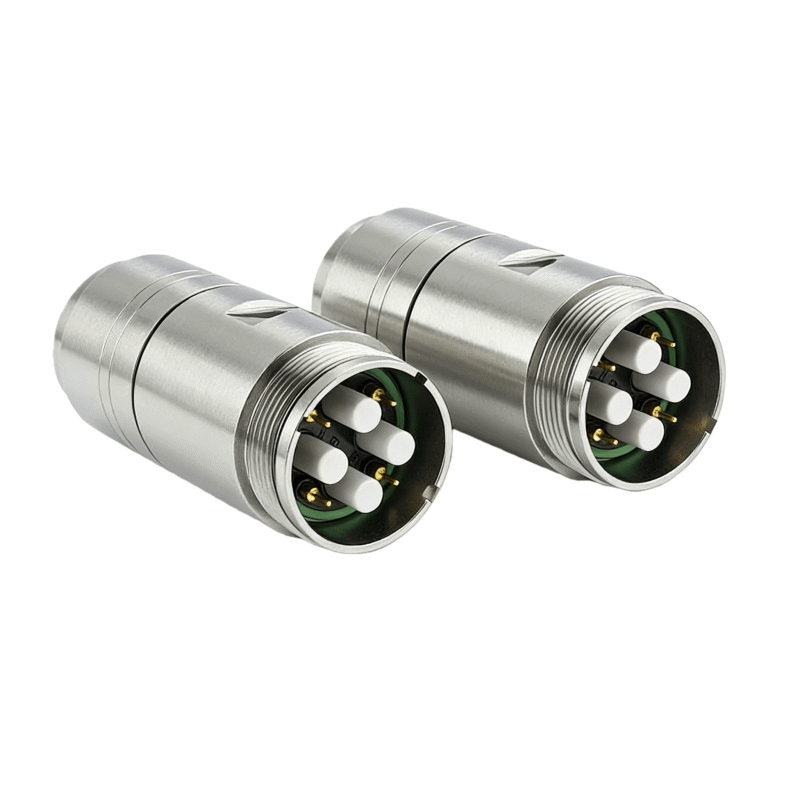

M58 Power Connector, Male & Female Industrial High-Current Plug, 58 mm Metric Thread, IP67/IP68 Waterproof for High-Power Drives & Infrastructure
What is M58 Connector
M58 connector is a metric circular connector with a 58 mm external thread diameter. These connectors are designed to meet the most demanding power requirements of industrial automation, handling large-scale energy transfers that smaller connectors cannot handle.
Our M58 connectors comply with DIN EN 61984, ensuring the highest level of safety and performance. They are ideal for large servo motors, high-capacity frequency converters, and heavy-duty industrial power distribution systems, providing a reliable and stable interface for high-voltage, high-current applications.
Advantages of M58 Connectors
- Extreme Power Transmission
Capable of handling massive currents (up to 150A) and high voltages (up to 630V/1000V), ideal for the world’s most powerful industrial motors.
- Rugged Construction
The oversized metal housing provides unrivaled mechanical strength, making it resistant to extreme shock, vibration, and physical impact.
- Maximum Safety
Features advanced insulation and robust grounding (PE) contacts to ensure safe operation under heavy loads.
- Optimal EMI Protection
Full 360° metal shielding ensures zero electromagnetic interference, preserving signal integrity even next to high-power cables.
- Long-Life Performance
Designed with high-performance, low-resistance contacts to minimize heat buildup and maximize service life in continuous-duty cycles.
Main Types of M58 Connectors
| M58 Power Connector (6 Pin) |
| M58 Power Connector (8 Pin) |
| M58 Hybrid Connector |
Details of M58 Connectors
| Parameter | Specification |
| Series | M Series Connector |
| Model | M58 Connector |
| Industry Standards | DIN EN 61984, UL 2237 Compliance |
| Number of Contacts | 6-Pin, 8-Pin (Power and Hybrid configurations) |
| Orientation | Straight or Right Angle |
| Gender | Male & Female Socket Sets / Panel Mount |
| Coding/Insert | High-Current Power Inserts |
| Cable Diameter | Supports ultra-thick cables (up to 45 mm+) |
| Operating Temp | -40°C ~ +130°C (Heavy Industrial Grade) |
| Rated Voltage | 630V / 1000V AC/DC |
| Current Rating | Up to 150 A (Application specific) |
| Contact Resistance | ≤ 0.5 mΩ (Minimal loss for maximum efficiency) |
| Insulation Resistance | ≥ 100 MΩ |
| IP Rating | IP67, IP68 |
| Locking Style | Heavy-Duty Threaded (M58 x 2.0) |
| Mating Cycles | > 500 Cycles |
| Certification | CE, RoHS, UL, VDE |
M58 Power Selection Guide
| Configuration | Primary Function | Main Applications |
| 6-Pin (2+3+PE) | Heavy Motor Supply | Large Servo Motors, Industrial Pumps, Blowers |
| 8-Pin (4+3+PE) | Multi-Phase Power | Complex Drive Systems, Power Distribution |
| Hybrid | Power + Feedback | Integrated High-Power Single-Cable Technology |
Typical Applications：
- High-Power Servo Drives & Inverters
- Heavy Industrial Machinery & Robotics
- Renewable Energy (Large Wind Turbines)
- Marine & Offshore Power Systems
- Mining & Excavation Equipment
- Steel Mills & Heavy Manufacturing
- Rail & Transportation Infrastructure
Huada Group – Your Professional Connector Manufacturer In China
Huada is a professional connector manufacturer integrating R&D, design, and manufacturing. We are ISO 9001 certified, ensuring standardized design, production, and testing processes. For over 20 years, huada has been committed to providing one-stop connector solutions for various industries.
Our modern factory is powered by advanced automation, featuring state-of-the-art equipment like automatic welding machines, precision crimping systems, and automated assembly lines. We have a complete production line from processing and assembly to testing, enabling efficient and large-scale automated production.
At huada, we provide 24/7 online professional technical support and comprehensive sales services, including selection guidance, drawing support, project follow-up, and after-sales service. Want to learn more about our M58 connector? Please contact huada at +86-152120067961 or email sales@connector-sensor. com for more information.
