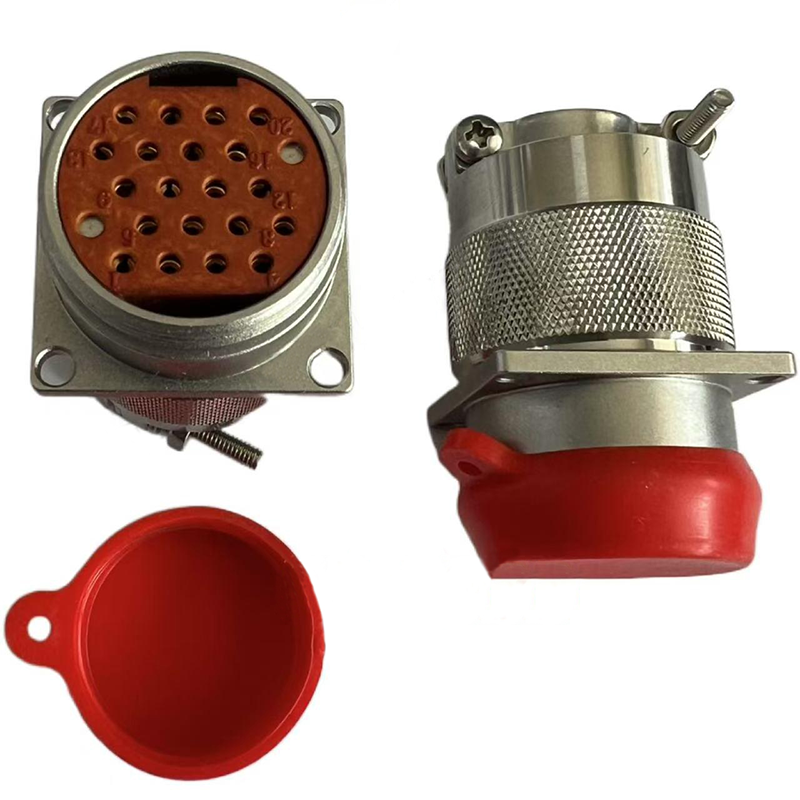

FD Series Connector, FDA-20T

Click to enlarge

FD Series Connector, FDA-20T

特点

-Series: FD Series MIL-Spec Connector

–P/N: FDA-20T

– Connector Type: Plug

-Number of Contacts: 20

– Threaded coupling for secure and quick connection

– Hermetically sealed design for harsh environments

– Flame-resistant socket structure for short-term high-temperature flame exposure

– For vehicle and weapon system electrical connections

– Compliant with applicable Q/Agl enterprise standards:
Q/Agl.007, Q/Agl.007.1, Q/Agl.007.2, Q/Agl.007.3, Q/Agl.007.4,
Q/Agl.036, Q/Ag-1.007.5, (Z)-Q/Ag20070

类别

FD Series Circular Separable Electrical Connector, 20-Pin Contact, FDA-20T

Description：

The FD series connectors（FDA-20T） are robust, military-standard connectors widely used in vehicles, weapons, and various electronic devices. These connectors feature a threaded quick-connect system and a fully sealed design, providing excellent protection in harsh environments.

The sockets feature an explosion-proof structure and are equipped with a special panel capable of withstanding high-temperature flames. This ensures maximum reliability and safety for your circuits, even under extreme conditions.

Model Identification Guide：

FD – A – 20 – T
① ② ③ ④
① Main Code: FD
②Configuration: A-Flame-proof Configuration

③ Number of Contacts: 20 pins
④ Connection Type: T-Plug

FDA-20T Specification

Series:	FD Series Mil-Spec Connector
Type of Connector:	圆形电气连接器
P/N:	FDA-20T
Contact Number:	20
Connector Type：	Plug (Male)
Shell Material:	Aluminum Alloy
Contact:	Gold-plated, Copper Alloy, Welding Type
Sinusoidal Vibration：	10Hz~2000Hz, Acceleration 98 m/s²
Shock:	735 m/s²
Acceleration：	833 m/s²
Separation Force:	19.6~59
Contact Resistance：	≤ 5 mΩ
Rated Current：	5 A
Insulation Resistance:	Normal: 1000 MΩ High Temperature:1000 MΩ Damp: 10 MΩ
Withstand Voltage:	Standard：1000 Vrms Damp：500 Vrms Low Air Pressure: 200 Vrms
Working Temperature Range:	-40°C~+85°C
Working Pressure:	222. 9 kPa~6. 67 Pa
Relative Humidity	95%~98% at 40±2°C
Salt Fog:	96 h (FDB)
Mechanical Life：	300 cycles
Military Standard：	Q/Agl.007, Q/Agl.007, Q/Agl.007.4, Q/Agl.007.3, Q/Agl.036, Q/Agl.007.1, Q/Ag-1.007.5, (Z)-Q/Ag20070, Q/Agl.007.2
Minimum Order Quantity:	100 pcs
Delivery Time:	2-9 weeks
Supply Ability:	100,000 pcs per month
Combination of Usage：	FDA-20Z
