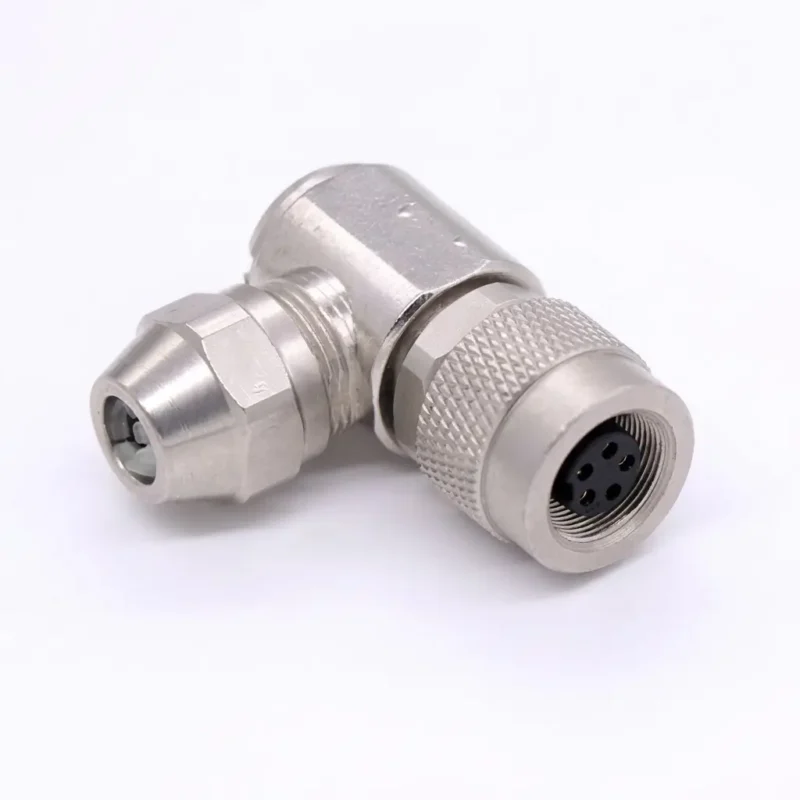

M9 Connectors

Features

– Series & Model: M Series / M9 Metric Circular Connector

-Pin Counts: 2, 3, 4, 5, 7, and 8 poles for high-density signal transmission

-Gender & Mounting: M9 Male & Female (Plug, Receptacle, Panel Mount)

-Space-Saving: 9mm thread diameter (M9 x 0.5), ideal for subminiature and handheld devices

-Applications: Precision signal routing in medical devices, lab instruments, and micro-sensors

-Dual Protection: Available in IP40 (indoor) and IP67 waterproof (outdoor) ratings when mated

-Secure Locking: Precise M9x0.5 threaded locking for vibration-proof and secure connections

-Rugged Housing: Nickel-plated brass or high-quality polymers for excellent 360° EMI/RFI shielding

-Terminations: Supports solder cups, PCB dip-solder, and custom overmolded cable assemblies

-Durability: Rated for >500 mating cycles with low contact resistance (<3 mΩ) via gold-plated pins

M9 Circular Connectors, Male & Female Precision Plug, 9mm Metric Thread, IP67 Waterproof for Compact Instrumentation

What is an M9 Connector?

M9 connectors are subminiature metric circular connectors featuring a 9 mm outer locking thread (M9 x 0.5) and an ultra-compact 11.5 mm shell diameter. Engineered as a high-density, space-saving alternative to M8 and M12 interfaces, they are the industry standard for reliable signal and power transmission in space-constrained, high-vibration applications such as medical equipment, precision instruments, and advanced automation sensors.

Main Types of Our M9 Connectors

To meet diverse environmental requirements, Huada offers full series compatibility with international brands (such as Binder 711/712 series). Our portfolio supports various orientations (Straight and Right Angle) and mounting types (Panel Mount, Front/Rear Fastened, and PCB Dip-Solder).

M9 Male Cable Connector & Female Cordsets: Factory overmolded cables with custom lengths from 0.5m to 10m (High-flex / Drag chain cables available).

M9 Waterproof Connector (IP67 / IP68 / IP69K): Designed with internal O-ring seals, ideal for heavy washdown or wet outdoor deployments.

M9 IP40 Connector (Indoor Precision): Non-waterproof, subminiature design optimizing cost and space for laboratory and medical device internal wiring.

By Pin Counts: Available in 2-pin, 3-pin, 4-pin, 5-pin, 7-pin, and 8-pin configurations. (The 7-pin M9 connector and 8-pin variants are highly optimized for multi-channel data and shielded sensor networks).

Core Advantages of M9 Circular Connectors

-Ultra-Compact & High-Density Interconnect

Provides up to an 8-pole configuration within an 11.5 mm diameter envelope, saving up to 50% face-space compared to standard M12 connectors without compromising electrical performance.

–Dual Environmental Protection Classes

IP40 Series: Smooth mating, budget-friendly, designed for medical monitors and test lab instruments.
IP67/IP68 Waterproof Series: 100% vacuum leak tested before shipment. Dust-tight and resistant to temporary water immersion, shielding sensitive internal electronics.

–Comprehensive 360° EMC Shielding

Available with full metal shells (Nickel-plated brass) and internal shielding structures that guarantee stable, interference-free signal transmission even under intense electromagnetic interference (EMI) on factory floors.

-Rugged Mating Cycles & Anti-Vibration

Features a robust threaded screw locking mechanism (M9 x 0.5) coupled with premium Gold-plated over Copper Alloy contacts. Rated for greater than 500 mating cycles with a contact resistance of less than 3 mΩ.

Technical Specifications Table

Parameter	Specification & Engineering Ratings
Series & Thread Size	M9 Series Connector (M9 x 0.5 Thread Pitch)
Industry Compliance	Built to strict IEC subminiature circular connector standards
Number of Contacts	2, 3, 4, 5, 7, 8-Pin Configurations
Gender Variants	M9 Male Connector / M9 Female Receptacle Socket Sets
Termination Method	Solder Pins / PCB Tail Dip-Solder / Pre-molded Cable
Cable Compatibility	Accepts wire up to 24 AWG (Cable jacket OD 3.5mm – 5.0mm)
Electrical Ratings	Rated Voltage: 30V to 125V Current Rating: 1A to 4A (Pin count dependent)
Dielectric Integrity	Contact Resistance: ≤3 mΩ Insulation Resistance: ≥100 MΩ
Environmental Ingress	IP40 (Indoor Grade) / IP67 & IP68 (Waterproof Industrial Grade)
Materials & Plating	Housing: Nickel-plated Brass & PA66 Contacts: Gold over Brass/Copper Alloy
Certifications	CE, RoHS, Reach Compliance

M9 Connectors Selection Guide

Pin Count	Connector Gender & Type	Primary Function	Typical Applications & Markets
2-Pin / 3-Pin / 4-Pin	Male Plug / Female Socket	DC Power Supply & Basic Switching	Micro-sensors, Proximity Switches, Miniature LED Lighting, Drones
5-Pin / 7-Pin / 8-Pin	Male & Female Shielded	Multi-signal & High-Speed Data	7-pin M9 connector for Patient Monitors, Handheld GPS, Lab Diagnostics

Huada Group — Your Professional OEM/ODM M9 Connector Partner in China

As a premier industrial interconnect manufacturer with over 20 years of R&D expertise, We deliver high-precision, one-stop component solutions globally. Our modern, ISO 9001-certified manufacturing plant operates fully automated assembly lines, precision wire crimping systems, and advanced automatic welding machines to handle high-volume B2B orders with unmatched efficiency.

Why Choose US:

Cross-Reference & Compatibility: Our M9 parts are 100% cross-compatible with global leading brands, offering an excellent high-performance, cost-effective alternative for your supply chain.

Flexible Customization (Low MOQ): We support custom cable assembly (Overmolding, right-angle routing, raw cable material selection like PUR/PVC) with low minimum order quantities for prototyping.

Engineering drawing Support: We provide comprehensive 2D/3D CAD drawing verification before production to guarantee your hardware integration is error-free.

Looking for a reliable supply chain partner? Drop your BOM list, custom cable length requirements, or requests for free engineering drawings to our team at sales@connector-sensor.com, or call us at +86-152120067961. Get a comprehensive, expert technical quote within 24 hours!
