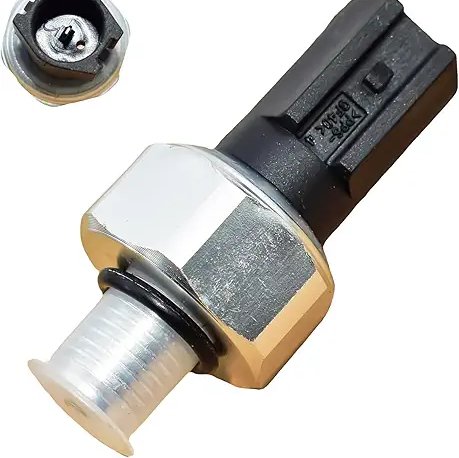

Transmission Fluid Pressure Sensor, Pressure Sensor
Transmission Fluid Pressure Sensor, Pressure Sensor
Key Features:
High-accuracy transmission fluid pressure measurement with ±1% FS precision
Wide operating temperature range from -40°C to +125°C for all driving conditions
Fast response time under 5 ms for real-time transmission monitoring
Durable automotive-grade construction resistant to vibration, heat, and corrosion
Compact, lightweight design for easy integration into modern transmission systems
Low power consumption compatible with vehicle ECU and control modules
Compact design supporting 0.5–4.5 V or 4–20 mA output options
Compatible with ATF, CVT, and other transmission fluid types
Long operational lifespan exceeding 100,000 hours under normal use
Ideal for OEM, aftermarket, and high-performance vehicle transmission applications
- sales@connector-sensor.com
- +86 15120067961
Transmission Fluid Pressure Sensor – High‑Accuracy Oil Pressure Sensor for Automatic Transmission, Hybrid, and Powertrain Systems
Product Description
Transmission fluid pressure sensors are precision automotive‑grade sensing devices designed to monitor hydraulic pressure in automatic and dual‑clutch transmission systems.
Our sensors deliver accurate, real‑time pressure feedback to the transmission control unit (TCU) or powertrain control module (PCM), enabling smooth gear shifting, clutch engagement, and system protection. Built to withstand continuous exposure to hot oil, vibration, and electrical noise, these sensors ensure dependable performance across all driving conditions and vehicle platforms.
Advantages of Transmission Fluid Pressure Sensor
High measurement accuracy across a wide dynamic range for reliable TCU feedback
Fast response for precise gear shifting and hydraulic control
Excellent thermal stability and resistance to transmission fluids, ATF, and engine oil
Rugged stainless‑steel or ceramic construction for long‑term durability
Integrated temperature compensation for consistent accuracy across temperature ranges
Compact and sealed automotive housing for easy integration and installation
Analog or digital output options compatible with ECU / TCU systems
Low power consumption suitable for modern hybrid and EV transmissions
AEC‑Q100 and RoHS compliant for global OEM and Tier‑1 suppliers
Transmission Fluid Pressure Sensor Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Automotive Transmission Fluid Pressure Sensor |
| Pressure Range | 0–5 MPa / 0–10 MPa / customizable ranges |
| Output Type | Analog (0.5–4.5 V), Digital (SENT / CAN / LIN optional) |
| Accuracy | ±0.5%FS (typical) |
| Response Time | ≤1 ms |
| Operating Temperature | −40°C to +150°C |
| Fluid Compatibility | ATF, gear oil, engine oil, hydraulic fluids |
| Supply Voltage | 5 V (nominal) |
| Current Consumption | ≤5 mA |
| Construction Material | Stainless steel / ceramic diaphragm with sealed connector |
| Connector Type | Standard automotive connector (M12 / OEM specific) |
| Temperature Compensation | Integrated, ECU‑calibrated output |
| Environmental Protection | IP67–IP69K, vibration and heat‑resistant design |
| Compliance | RoHS, REACH, CE, AEC‑Q100 qualified |
Typical Applications of Transmission Fluid Pressure Sensor
Automatic & Dual‑Clutch Transmission Systems
Hydraulic pressure sensing for clutch and shift control
Real‑time feedback for TCU adaptive transmission management
Preventive control for over‑pressure and mechanical protection
Hybrid & Electric Powertrain Systems
Inverter and e‑transmission pressure monitoring
Cooling and lubrication system control in HEV / BEV drivetrains
Heavy‑Duty & Off‑Road Vehicles
Transmission oil pressure monitoring in construction, agricultural and mining machinery
Gearbox monitoring for heavy trucks, buses, and fleet vehicles
Industrial & Marine Power Systems
Hydraulic pump and gearbox pressure sensing in marine or industrial transmissions
Remote monitoring for predictive maintenance and fault diagnostics
