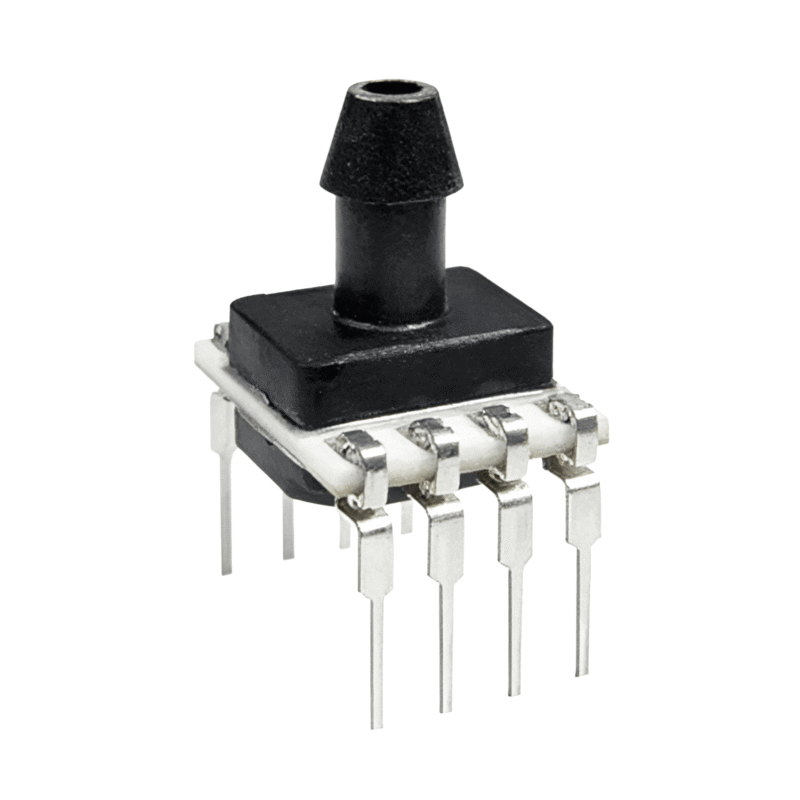

Board Mount Pressure Sensor

Key Features

High measurement accuracy up to ±0.25% FS ensures reliable and precise pressure monitoring
Wide pressure ranges from vacuum to 1 MPa (145 psi) support various industrial and embedded applications
Compact MEMS PCB-mount design enables easy integration in space-limited electronic systems
Low power consumption of less than 5 mA makes it ideal for portable and IoT devices
Supports analog (0.5–4.5 V) and digital (I2C/SPI) outputs for direct MCU interfacing
Fast response time of ≤1 ms allows real-time pressure detection and control
Stable operation across a wide temperature range of -40°C to +125°C for harsh environments
Excellent long-term stability of ≤0.1% FS/year reduces recalibration requirements
High resistance to vibration (10–500 Hz) and shock (up to 50 g) ensures durability in demanding conditions
Built-in temperature compensation minimizes drift and improves overall measurement accuracy

Board Mount Pressure Sensor | MEMS PCB Pressure Sensor for Industrial, Medical & IoT Applications

Board mount pressure sensors are compact MEMS-based sensing devices designed for direct integration onto printed circuit boards (PCB). They accurately convert pressure into electrical signals, enabling precise monitoring and control in embedded systems.

Our PCB mount pressure sensors feature miniature size, low power consumption, and high stability, making them ideal for space-constrained electronic products, industrial equipment, medical devices, and IoT applications.

Advantages of Board Mount Pressure Sensor

Miniature design for direct PCB mounting (SMD/DIP options)
High accuracy up to ±0.25% FS for precise measurement
Excellent long-term stability with low temperature drift
Low power consumption for battery-powered devices
Fast response time for real-time pressure monitoring
Wide pressure ranges: vacuum to high pressure (customizable)
Multiple output options: Analog, Digital (I2C / SPI)
High reliability and long service life
Suitable for mass production and embedded system integration

Board Mount Pressure Sensor Specifications

Parameter	Specification
Sensor Type	MEMS Board Mount Pressure Sensor
Pressure Type	Gauge / Absolute / Differential
Pressure Range	-100 kPa to 1 MPa (customizable)
Output Type	Analog voltage / Digital (I2C, SPI)
Accuracy	±0.25% FS to ±1% FS
Response Time	≤1 ms
Operating Temperature	-40°C to +125°C
Storage Temperature	-40°C to +150°C
Power Supply	3.3 V / 5 V (typical)
Current Consumption	< 5 mA (typical)
Mounting Type	PCB mount (SMD / DIP / SIP)
Package Material	Plastic or ceramic package
Media Compatibility	Clean air, non-corrosive gases or liquids
Long-Term Stability	≤0.1% FS/year
Protection Level	Up to IP67 (depending on package)

Typical Applications of Board Mount Pressure Sensor

Industrial automation & equipment

Used for real-time pressure monitoring in pneumatic systems, air compressors, vacuum equipment, and industrial process control to ensure stable operation and equipment protection.

Medical & healthcare devices

Integrated into ventilators, oxygen concentrators, CPAP machines, blood pressure monitors, and respiratory systems for precise airflow and pressure control in critical medical environments.

HVAC & air management systems

Applied in air duct pressure monitoring, filter clog detection, airflow control, and differential pressure measurement to improve energy efficiency and system performance.

Consumer electronics & smart IoT devices

Ideal for compact embedded designs such as smart home appliances, portable measurement devices, wearable electronics, environmental monitoring units, and smart air quality systems.

Automotive & electric mobility

Used for battery pack pressure monitoring, tire pressure modules, cabin pressure sensing, and air management in electric vehicles and intelligent transportation systems.

Laboratory & instrumentation

Integrated into analytical instruments, gas control systems, leak detection equipment, and portable calibration or testing devices where high accuracy and compact size are require.
