UQDB Couplings
Features
- Blind-mate design self-aligns as servers slide into the rack
- One-hand push-to-connect locking speeds up rack installation and service
- Flat-face seal keeps both sides leak-free, connected or disconnected
- Color-coded red and blue ports prevent supply-return wiring mistakes
- Four bore sizes match connectors precisely to your flow-rate needs
- Customizable tail interface adapts to your existing manifold or hose
- Rated for -55°C to +125°C across demanding data center environments
- Handles working pressure up to 1.6 MPa without compromising the seal
- Stainless steel body withstands years of coolant exposure and cycling
- EPDM seals handle glycol coolants and deionized water for 5,000 cycles

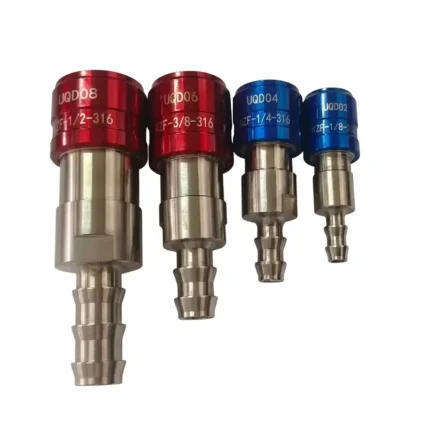

UQD Couplings
Features
- One-hand push-to-connect locking makes installation and maintenance faster
- Flat-face dual-seal keeps both halves leak-free when disconnected
- Red-blue color coding prevents supply-return line installation errors
- Four bore sizes cover every flow rate requirement
- Customizable tail terminations match your existing tubing and fittings
- Rated from -55°C to +125°C for extreme thermal conditions
- Handles working pressures up to 1.6 MPa safely
- Stainless steel housing resists corrosion in demanding environments
- EPDM seals deliver up to 5,000 reliable mating cycles
- Compatible with glycol coolants and deionized water systems
Y50DX Connectors
Overview
- Series: Y50DX Series Circular Electrical Connector (Power Type)
- Designed in accordance with GJB101A-97 and equivalent to MIL-C-26482 technical specifications
- Reliable 3-pin bayonet coupling mechanism enables fast, secure, and vibration-resistant mating
- Operates reliably from -55°C to +125°C with excellent resistance to vibration, shock, humidity, and salt spray
- Available with general sealing, high-vacuum potting, and glass-to-metal hermetic sealing for zero-leakage applications
- Multiple shell sizes, contact arrangements, and cable termination options meet diverse power connection requirements
- Lightweight aluminum alloy shell provides excellent mechanical strength, impact resistance, and cable strain relief
- Gold- or silver-plated copper alloy contacts support current ratings from 3A to 25A with low contact resistance
- Ideal for military equipment, aerospace systems, power distribution, communication equipment, and other harsh-environment electrical application
1.0 MM Connectors
3.5 MM Connectors
1.85 MM Connectors
Features
Frequency range up to 67 GHz for ultra-high-frequency performance
Precision air dielectric design for low VSWR and insertion loss
Mechanically compatible with 2.4mm connectors
High durability for repeated mating cycles
Excellent signal integrity for RF and microwave systems
Available in various configurations including cable mount, panel mount, and adapters
