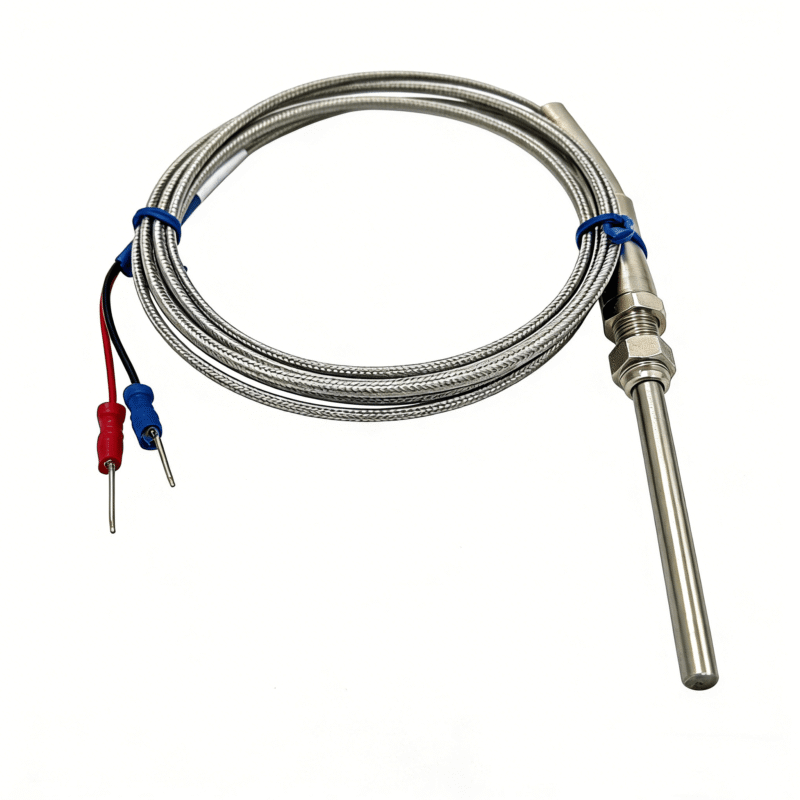

Type  E Thermocouple – High-Sensitivity Industrial Temperature Sensor

What is a Type E Thermocouple​

E-Type thermocouple is a high-precision, high-sensitivity temperature sensor widely used in industrial, laboratory, and scientific applications. Constructed from premium Chromel-Constantan (NiCr-CuNi) alloy with a mineral-insulated sheath, it delivers accurate, stable temperature measurements, especially in low to medium-temperature ranges. Perfect for chemical processing, electronics, battery testing, and thermal engineering systems.

• High Sensitivity: Up to 68 µV/°C, ideal for precise low and medium temperature measurement.

• Wide Temperature Range: -200°C to 900°C (continuous), up to 1000°C short-term.

• Accurate & Stable: Minimal thermal drift, compliant with IEC 60584 and ASTM E230 standards.

• Durable Construction: MgO mineral-insulated sheath with hermetically sealed tip ensures long-term stability.

• Corrosion & Oxidation Resistant: Performs reliably in oxidizing, inert, and vacuum atmospheres.

• Fast Response Time: Quick thermal reaction for dynamic temperature monitoring.

• Noise & Shock Resistant: Reliable readings in electrically noisy or vibration-prone industrial environments.

• Customizable Design: Probe diameter, length, sheath material, connector, and thread type available.

• Global Certification: CE, RoHS, ISO 9001 certified, suitable for worldwide industrial standards.

Type E Thermocouple Specifications

Typical Applications of Type E Thermocouple

E-Type thermocouples are ideal for accurate and sensitive temperature measurement in:

• Industrial furnaces and kilns

• Laboratory testing and research facilities

• Chemical and petrochemical plants

• Electronics and battery temperature monitoring

• Thermal engineering and process control systems

Why Choose Our  Type E Thermocouples?

With over 20 years of experience, Huada Group produces high-precision E-Type thermocouples trusted by industries worldwide:

• Exceptional sensitivity for low and medium temperature measurements

• Long service life with stable readings even in harsh environments

• Consistent quality across production batches for industrial-scale applications

• Fast sample delivery (3–7 days) and bulk production (7–15 days)

• Competitive factory pricing, direct manufacturer support, and expert technical assistance

Order Your E-Type Thermocouple Today for reliable, high-accuracy temperature measurement globally.

FAQ

1. What material is an E‑type thermocouple made of?

An E‑type thermocouple is made of two different alloys:

Positive leg (+): Nickel‑chromium alloy (often called Chromel), typically about 90% nickel with 10% chromium.

Negative leg (–): Copper‑nickel alloy (often called Constantan), typically about 95% nickel with small amounts of copper, iron, manganese, and other elements.

This combination gives E‑type one of the highest electromotive forces (EMFs) among standard thermocouples—about 68 μV/°C—so it produces strong signals and is well suited to precision measurement in laboratory and industrial applications.

2. What is the color code for E‑type thermocouple wire?

Color codes can vary slightly by standard (ANSI, IEC, or manufacturer), but the common practice for E‑type is:

Thermocouple‑grade wire insulation:

• Positive leg: Red
• Negative leg: White (or light‑colored sheath)

Connector/extension wire identification:

Plug or receptacle body color is often purple for Type E, to distinguish it from Type K (yellow), Type J (black), and Type T (blue).

For installation reliability, always check the thermocouple color‑code reference table on your product datasheet or manual, especially when mixing different thermocouple types.

3. What is the temperature range of a Type E thermocouple?

The usable range depends on whether you are using thermocouple‑grade wire or extension‑grade wire:

• Thermocouple‑grade wire:

  Typical range: –270 °C to 870–900 °C (–454 °F to 1600–1652 °F), depending on insulation, sheath material, and standard (ITS‑90 / IEC 60584‑1).

• Extension‑grade wire:

  Recommended range: 0–200 °C (32–392 °F) only for signal extension, not for direct exposure to high temperature.

In practice, Type E is commonly used between –50 °C and 740 °C where its accuracy and stability are particularly good, making it ideal for refrigeration, cold storage, and many medium‑temperature industrial processes.

4. What is the difference between Type E and Type K thermocouples?
