Type S Thermocouple Temperature Sensor for

Key Features

Wide temperature range: 0°C to 1600°C (up to 1760°C short-term)
High accuracy and excellent long-term stability
Mineral-insulated (MgO) sheathed design for durability
Fast response time for precise temperature measurement
Anti-vibration, oxidation-resistant, and corrosion-resistant
Compatible with standard temperature controllers, data loggers, and acquisition systems
Customizable probe length, diameter, sheath material, connector, and thread type
CE, RoHS, ISO 9001 certified

Type S Thermocouple – High-Precision Industrial Temperature Sensor

Type S thermocouple is a high-precision industrial temperature sensor designed for extreme environments. Made from Platinum-Rhodium (Pt10%Rh-Pt) alloy with a mineral-insulated sheath, it ensures stable, accurate temperature measurement for industrial furnaces, aerospace, glass production, chemical processing, and thermal engineering applications.

Main Types of Type S Thermocouple

At Huada, we offer premium Type S thermocouples (Platinum-10% Rhodium vs. Platinum) for high-temperature applications up to 1600°C. Our complete range includes probes, wiring, and accessories with full customization options.

1. Bare/Exposed Junction Type S Thermocouple

2. Multipoint Type S Thermocouples

3. Surface-Mount Type S Thermocouple

4. Miniature/Micro Type S Thermocouple

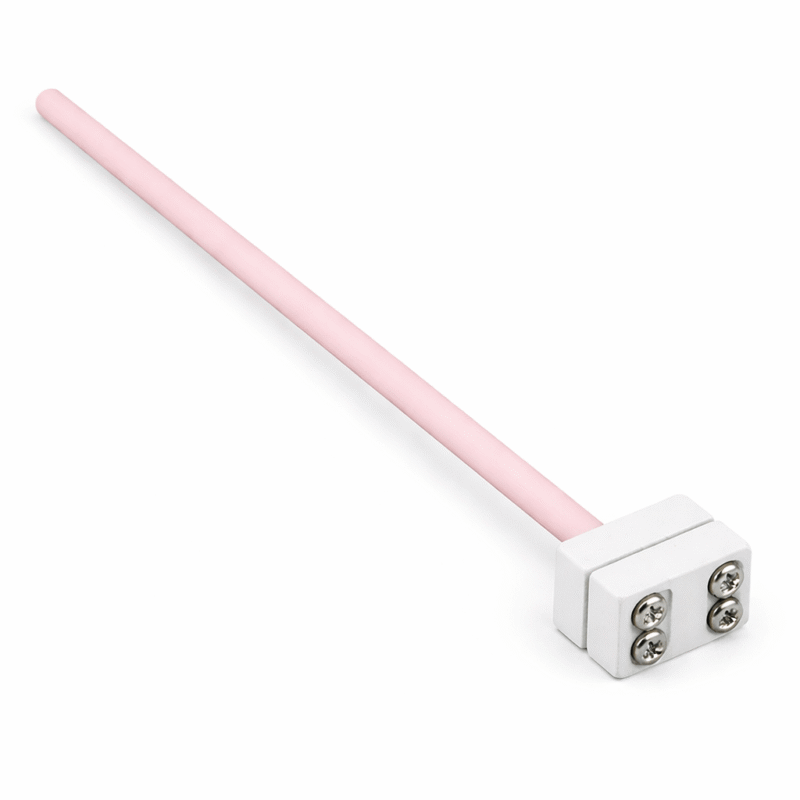

5. High-Temperature Ceramic Sheathed Type S Thermocouples

6. Type S Thermocouple Wire

7. Type S Thermocouple Extension Wire

8. Type S Thermocouple Connector

Main Benefits

Precision temperature measurement according to ASTM E230 and IEC 60584 standards
Excellent long-term stability with minimal thermal drift
Wide operating temperature range: 0°C to 1600°C (continuous), up to 1760°C for short-term use
High-purity Platinum (Pt) / Platinum-Rhodium (Pt-Rh) conductors for superior performance
Mineral-insulated (MgO) sheathed design for fast response and enhanced durability
Hermetically sealed sensing tip with laser welding for leakproof operation and vibration resistance
Outstanding oxidation and corrosion resistance at high temperatures
Strong anti-interference capabilities for stable performance in complex industrial systems
Compatible with standard temperature controllers, data loggers, and acquisition systems
High mechanical strength, shockproof, and flexible design
Consistent quality across batches for industrial-scale applications
Fully calibrated and ready for immediate installation
CE and RoHS certified for international compliance
Flexible Customization Options: probe diameter, length, sheath material, connector, and thread type

Typical Applications of Type S Thermocouple

High-Temperature Furnaces

Ideal for measuring temperatures up to 1600 °C in ceramic, glass, and metal processing furnaces.

Metal Heat Treatment

Used in monitoring annealing, tempering, and sintering processes for stainless steel, platinum, and other alloys.

Laboratory Equipment

Precise temperature measurement in scientific experiments, calibration labs, and reference standards.

Aerospace Industry

Temperature sensing in jet engines, turbine testing, and other high-temperature aerospace components.

Glass Manufacturing

Measuring molten glass temperature in tanks, forehearths, and forming processes.

Semiconductor Processing

Monitoring temperatures in crystal growth, CVD, and high-purity wafer manufacturing.

Platinum and Precious Metal Melting

High-precision monitoring in melting and refining of platinum, gold, and rhodium.

Vacuum and Controlled Atmosphere Furnaces

Reliable performance in harsh environments with low oxygen or vacuum conditions.

Power Generation

Monitoring boiler tubes and high-temperature zones in power plants.

Calibration Standards

Often used as a reference thermocouple due to its stability and accuracy at high temperatures.

Type S Thermocouple Specifications

Parameter	Specification
Thermocouple Type	S-Type Thermocouple (Pt10%Rh-Pt)
Standards	IEC 60584, ANSI E230
Temperature Range	0°C to +1600°C (continuous)
Maximum Temperature	Up to 1760°C (short-term)
Accuracy Class 1	±1.0°C or ±0.25% of reading (whichever is greater)
Accuracy Class 2	±2.5°C or ±0.5% of reading (whichever is greater)
Insulation Type	MgO Mineral Insulated (MI)
Sheath Materials	Stainless Steel 304, Inconel 600, Ceramic
Probe Diameter	1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm, 4.0 mm, 6.0 mm
Response Time	t0.5 < 1 second
Working Environment	Oxidizing, Inert, and Vacuum atmospheres
Protection Rating	IP65 (standard), IP68 (optional)
Installation Types	Threaded, Flanged, Welded, Plug-in
Certifications	CE, RoHS, ISO 9001

Why Choose Our S-Type Thermocouples？

Huada Group has over 20 years of experience producing industrial thermocouples and temperature sensors. Our S-type thermocouples provide:

High temperature resistance, long service life, and vibration tolerance
Consistent performance across batches for industrial-scale applications
Fast sample delivery (3–7 days) and mass production (7–15 days)
Competitive factory pricing, direct manufacturer support, and professional technical assistance

Order Your S-Type Thermocouple Today for reliable, high-precision temperature measurement.

FAQ

1. What is the material or composition of an S Type Thermocouple?

An S Type Thermocouple is made of Platinum-10% Rhodium (Pt-10%Rh) as the positive conductor and pure Platinum (Pt) as the negative conductor. This combination provides excellent stability, high precision, and resistance to oxidation, making it suitable for high-temperature applications.

2. What is the temperature range of an S Type Thermocouple?

S Type Thermocouples operate reliably from 0°C to 1600°C (32°F to 2912°F). They are commonly used in laboratory furnaces, kilns, glass melting, and other high-temperature processes where precise measurement is critical.

3. How accurate is an S Type Thermocouple?

S Type Thermocouples are highly accurate, typically rated at ±1.5°C or ±0.25% of the measured temperature. This accuracy ensures stable and repeatable readings in critical high-temperature environments.

4. What is the color code of an S Type Thermocouple?

According to international thermocouple standards (IEC 60584):

Positive wire (Pt-10%Rh): Red
Negative wire (Pt): White
Correct identification of wires is important for proper installation and accurate measurement.

5. How much does an S Type Thermocouple cost?

The price depends on length, insulation type, sheath material, and customization. Standard S Type Thermocouples typically range from $50 to $200 per piece, while high-temperature or custom models may cost more. Bulk or OEM orders usually receive special pricing.

6. Type R vs Type S Thermocouple – What’s the difference?

Type R: Uses Platinum-13% Rhodium (Pt-13%Rh) as positive / Platinum as negative, slightly higher temperature limit (up to ~1700°C). Often used in industrial furnaces and high-temperature metallurgical processes.

Type S: Uses Platinum-10% Rhodium (Pt-10%Rh) as positive / Platinum as negative, slightly more stable at laboratory and kiln temperatures, widely preferred for precision applications requiring repeatable high-temperature measurements.

Both types are highly stable and corrosion-resistant, but Type S is generally more cost-effective for typical laboratory and kiln use.
