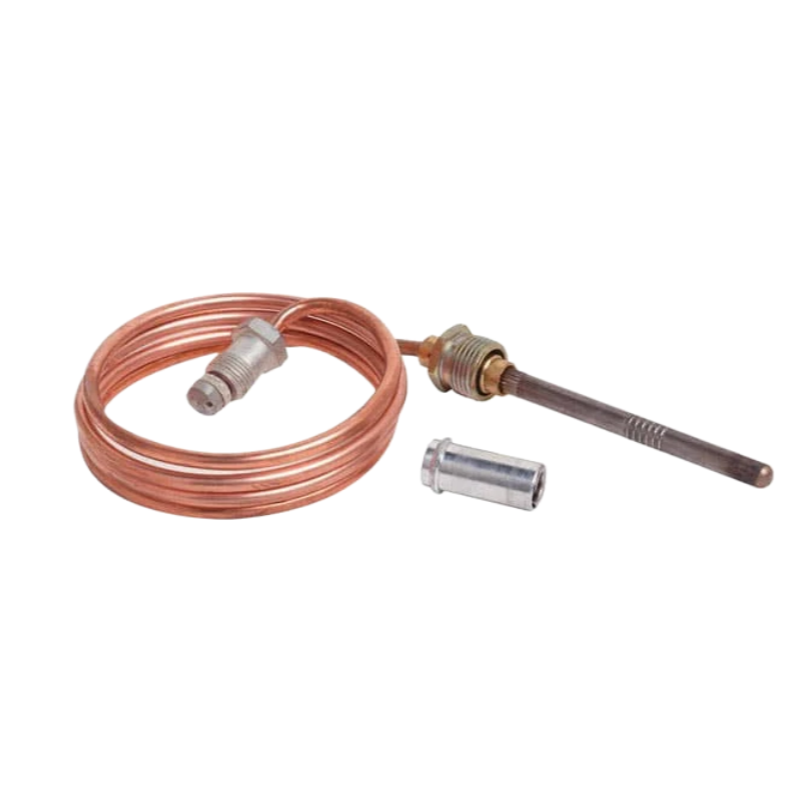

Copper Tube Thermocouple for Water Heater
Copper Tube Thermocouple for Water Heater
Key Features
High-temperature resistance up to +1,200°C for demanding heating environments
Fast response thermoelectric signal for real-time temperature sensing
Compatible with gas water heaters, boilers, and furnaces
Durable stainless steel sheathing ensures long-term reliability
Accurate ±2°C temperature measurement to ensure operational safety
Available in multiple lengths and connector types for OEM projects
Corrosion and oxidation resistant materials for extended lifespan
Plug-and-play installation for quick replacement and maintenance
Factory-calibrated for consistent signal accuracy and performance
RoHS and CE compliant for global industrial applications
- sales@connector-sensor.com
- +86 15120067961
High-Performance Water Heater Thermocouple for Safe Flame Control
A water heater thermocouple is a safety-critical sensor used in gas water heaters to monitor the pilot flame and control gas flow. When the pilot light is on, the thermocouple generates a small current that keeps the gas valve open; if the flame goes out, it automatically shuts off the gas supply to prevent leaks and explosion risks.
Our water heater thermocouple series is designed for OEM and replacement markets, featuring durable materials, stable output and plug‑and‑play installation for most residential and light commercial gas water heaters.
Main Benefits
Reliable flame safety: accurately senses pilot flame and shuts gas off when the flame fails.
Universal and model‑specific options compatible with major gas water heater brands (OEM / aftermarket).
High‑quality copper and nickel‑coated materials for long service life in high‑temperature combustion chambers.
Factory‑direct price, flexible MOQ, supporting distributors, wholesalers and OEM/ODM projects.
Customized lead length, connectors and thread sizes to match your gas valve and burner assembly.
100% functional testing before shipment, ensuring stable millivolt output and low field failure rate.
Strong engineering support for new heater projects, cost‑down replacement and cross‑reference design.
Short lead time with stable capacity, suitable for long‑term frame contracts and scheduled releases.
Water Heater Thermocouple Specifications
| Specification | Details |
|---|---|
| Type | Universal (Type K-style, dissimilar alloys) |
| Length | 18-36 inches (24/30/36″ common) |
| Voltage Output | 20-30 mV (at 500-800°F tip temp) |
| Material | Copper sheath + corrosion-resistant alloys |
| Temperature Range | -200°C to 1250°C (up to 800°F in use) |
| Connector | Push-in/screw (M8/M10) + adapters |
| Certifications | UL/CSA listed |
| Lifespan | 5-10 years |
Typical Applications
Gas Water Heater
Monitors pilot light, generating 20-30 mV to keep the gas valve open; shuts off gas if flame extinguishes to prevent leaks and explosions.
Residential Gas Furnace
Ensures safe burner operation by verifying flame presence in heating systems.
Other Gas Appliances
Used in fireplaces, ovens, and boilers for flame supervision in millivolt control systems.
FAQ
Q1: What does a water heater thermocouple do?
A water heater thermocouple senses the pilot flame and keeps the gas valve open while the flame is burning; if the pilot goes out, it stops the gas flow to prevent dangerous gas leaks.
Q2: How do I know if my water heater thermocouple is bad?
Common symptoms include a pilot light that will not stay lit, frequent flame outages and inconsistent hot water because the gas valve keeps shutting off when the thermocouple fails to detect the flame.
Q3: Is your thermocouple compatible with my water heater brand?
We offer both universal and model‑specific thermocouples that fit most leading gas water heater brands; by checking thread size, lead length and connector type, we can recommend a compatible replacement for your unit.
Q4: How long does a water heater thermocouple typically last?
Service life depends on flame quality, combustion conditions and usage hours, but in normal residential applications thermocouples usually operate for years before wear, corrosion or heat damage requires replacement.
Q5: Can I replace a water heater thermocouple myself?
Many homeowners and technicians replace thermocouples by shutting off gas, removing the old sensor and installing a compatible new one; however, if you are not familiar with gas safety, we strongly recommend using a licensed professional.
Q6: Why does my new thermocouple still not keep the pilot lit?
If a new thermocouple does not solve the issue, the problem may come from a dirty pilot orifice, weak pilot flame, faulty gas valve or draft issues around the burner compartment, which should be checked by a qualified technician.
Q7: Do you support OEM and bulk orders for thermocouples?
Yes, we supply OEMs, distributors and service companies with customized thermocouples, including private‑label printing, special lengths, connectors and packaging, as well as long‑term, scheduled bulk orders.
